Official DistributorSKU
MPN
PLOTMARK
Weight
0.011 kg

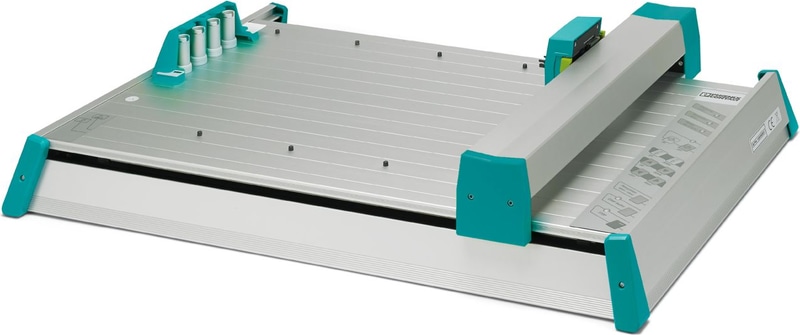

PLOTMARK - Marking plotter
Marking plotter for the entire portfolio of UC marking materials and materials in sheet and strip format.
- The plotter is controlled using the PROJECT complete software
- The pens are removed and deposited automatically
- Easily operated with just a few buttons
- The plotter can be connected to the computer quickly and easily via the Centronics or USB interface
- An automatic marking preparation function ensures optimum marking results right from the first character
- During long intervals, the plotter pens are stored safely in a pen station
Technical Specifications
Marking
| Identification technology | Plotter |
Device properties
| Operating system | MS Windows 7, MS Windows 8.1, MS Windows 10 |
Supply
| Supply Voltage Range | 100 V AC ... 240 V AC (50 Hz ... 60 Hz) |
Interfaces
| Interface | USB 2.0 |
Dimensions
| Width | 480 mm |
| Height | 155 mm |
| Length | 690 mm |
Material specifications
| Color | silver |
| Material Plastic signs | UC |
| Material Plastic signs | UCT |
| Material Plastic signs | US |
| Material Plastic signs | UM |
Ambient conditions
| Ambient Temperature (Operation) | 10 °C ... 35 °C |
| Ambient temperature (storage/transport) | -10 °C ... 50 °C |
| Permissible humidity (operation) | 35 % ... 75 % |
| Permissible humidity (storage/transport) | 10 % ... 90 % |
Accessories
CMS-P1-M/WEID MCSF 4-6 - Plastic magazine for CMS-P1 plotter. Accepts 1 Weidmüller Multicard mat SF 4-6
CMS-P1-PENDEPOT - 4 replacement seals for the pen station of the plotter systems and 10 marking preparation plates
CMS-P1-M/ENTRELEC RC - Plastic magazine for CMS-P1 plotter. To accommodate 2 Entrelec sheets RC55-85, RC410-810, RTC610/810/1010
CMS-P1-M/GPE ENGRAVING - Magazine for CMS-P1-PLOTTER, to accommodate GPE materials, especially for the purpose of engraving
CMS-P1-M/MURR 400 - Plastic magazine for CMS-P1 plotter. To accept 2 Murrplastik sheets KS 4/12, 4/18, 4/23, 4/30
CMS-P1-M/WIEL - Plastic magazine for CMS-P1 plotter. To accept 3 Wieland sheets, type 50, 51, 60, 63, 67, 68, 69 or 80
P1 UC-MAG 1 - Magazine, for CMS-P1-PLOTTER and PLOTMARK, for accommodating UC-TM..., UC-TMN..., UC-WMC 3,1..., UC-WMTBA...
P1 UC-MAG 4 - Magazine, for CMS-P1-PLOTTER and PLOTMARK, for accommodating UC-TMF..., UC1-TMF..., UC-WMT...
CMS-DISPOSABLE-PEN 0,25 TR - Disposable pen, incl. adapter, integrated ink cartridge and pen station, writing thickness: 0.25 mm
