Official DistributorSKU
MPN
WMS 6,4 (20X10)RXL
Weight
1.672 kg
Series WMS

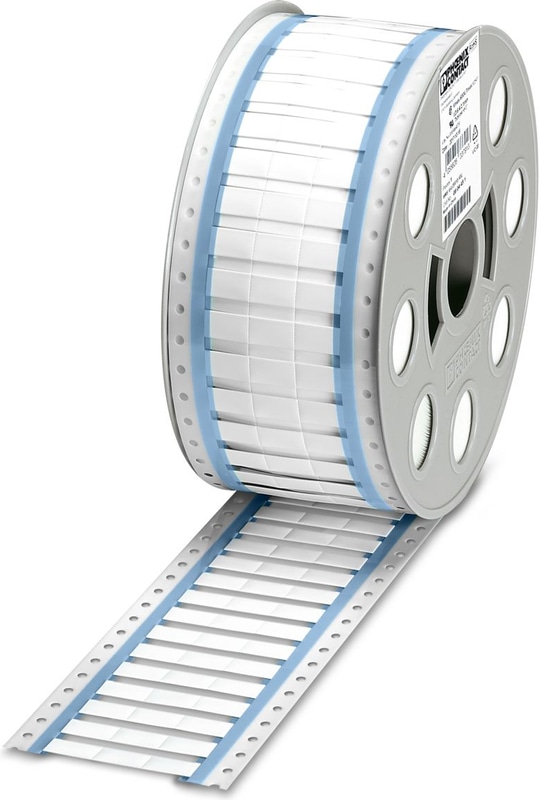

WMS 6,4 (20X10)RXL - Shrink sleeve
- Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects
- Ladder style design: For a good overview and to facilitate quick use, the sleeves are preassembled in cut lengths: 15 mm, 30 mm, or 60 mm
- As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position
- High diameter coverage with a shrink ratio of 3:1
- Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
Technical Specifications
Notes
| General | For the THERMOMARK ROLL and THERMOMARK ROLL 2.0 roll printers, this material can only be processed with an external media hub. |
Product properties
| Type | Shrink sleeve |
Marking
| Number of individual labels | 7500 |
| Number of individual labels per row | 3 |
| Identification technology | Thermal transfer for rolls |
Dimensions
| Width | 10 mm |
| Length | 20 mm |
External dimensions
| Outside diameter | 2.1 mm ... 6.4 mm |
Material specifications
| RoHS Compliant | yes |
| Color | white |
| Material | Polyolefine |
| Base element material | polyolefine |
| Components | halogen-free |
Cable/line
| External Cable Diameter | 2.1 mm ... 6.4 mm |
Test for substances that would hinder coating with paint or varnish
| Result | Test passed |
Scratch test for the determining scratch resistance
| Specification | DIN EN ISO 1518-1:2019-10 (following) |
| Requirements | ≥ 5 N |
| Result | Test passed |
Tesafilm test
| Specification | DIN EN ISO 2409:2013 (following) |
| Result | Test passed |
UV resistance
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
Temperature resistance
| Specification | ANSI/UL 969-2018:03 (following) |
| Test duration | 240 h |
| Rating 125 °C (150 °C) | Test passed |
Wipe resistance of inscriptions
| Specification | DIN EN 61010-1 (VDE 0411-01):2020-03 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Isopropyl [CAS No. 67-63-0] | Test passed |
| n-Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
| Sodium hydroxide 0.1 mol/l [CAS No. 1310-73-2] | Test passed |
| Ethanol (99 %) [CAS No. 64-17-5] | Test passed |
| Acetone (99 %) [CAS No. 67-64-1] | Test passed |
| Specification | ISO 175:2010 (following) |
| Test duration | 168 h |
| Sodium hydroxide 0.1 mol/l [CAS No. 1310-73-2] | Test passed |
| Ethanol (99 %) [CAS No. 64-17-5] | Test passed |
| Acetone (99 %) [CAS No. 67-64-1] | Test passed |
| Diesel [CAS No. 68476-34-6] | Test passed |
| IRM 901 | Test passed |
| IRM 902 | Test passed |
Testing in a condensation changing climate in the presence of sulfur dioxide
| Specification | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
Salt spray test
| Specification | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
| Test duration | 96 h |
Ambient conditions
| Ambient Temperature (Operation) | -55 °C ... 125 °C |
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
| Shelf life | 5 years |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Mounting
| Mounting Type | slide-on |
