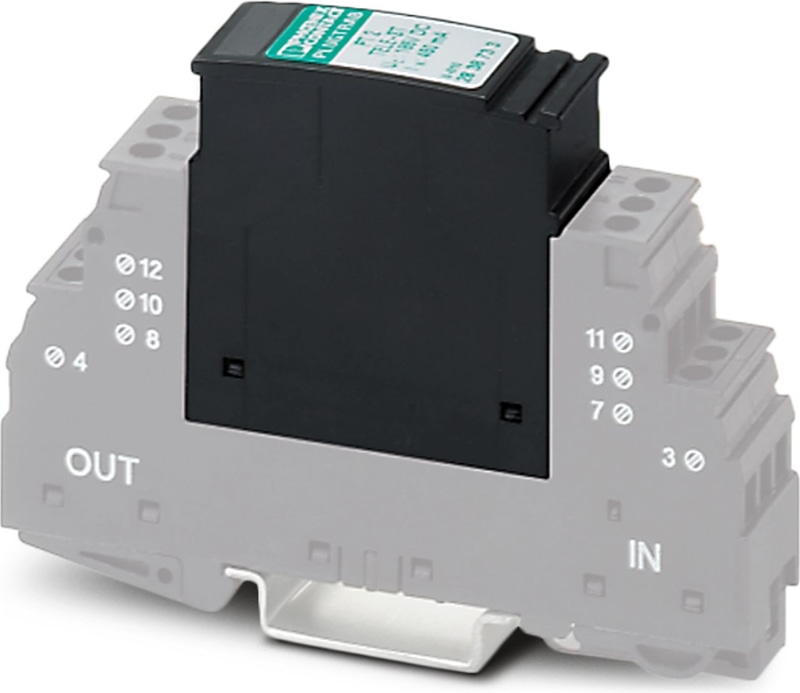

PT 2-TELE-ST - Surge protection plug
Surge protection plug for base element, for protecting a double conductor of analog telecommunication interfaces.
PT
The Phoenix Contact PT Series comprises feed-through terminal blocks that utilize Push-in connection technology, offering efficient and reliable wiring solutions for various industrial applications. These terminal blocks are designed for straightforward conductor insertion, enhancing installation speed and ensuring secure connections.
- Push-in Connection Technology: The PT Series employs a direct plug-in method, allowing solid conductors or conductors with ferrules to be inserted easily without the need for tools. This design facilitates quick and reliable wiring.
- Compact Design: The terminal blocks feature a space-saving form factor, making them suitable for applications where installation space is limited.
- High Electrical Ratings: Depending on the specific model, the PT Series terminal blocks can handle nominal voltages up to 800 V and nominal currents up to 32 A, accommodating a wide range of electrical requirements.
- Versatile Conductor Compatibility: These terminal blocks support various conductor types and sizes, providing flexibility in wiring configurations.
- Integration with CLIPLINE Complete System: The PT Series is compatible with Phoenix Contact's CLIPLINE complete system, allowing for standardized bridging, marking, and testing accessories, which simplifies inventory management and enhances system modularity.
Technical Specifications
Product properties
| Product family | PLUGTRAB PT |
| IEC test classification | B2 |
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| Type | Male |
| Number of Positions | 2 |
| Surge protection fault message | none |
| Wire pairs per module | 1 |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 185 V DC |
| Nominal voltage UN | 130 V AC |
Connection data
| Connection Method | pluggable |
Dimensions
| Width | 17.7 mm |
| Height | 45 mm |
| Depth | 52 mm |
| Horizontal pitch | 1 Div. |
| Complete module width | 17.7 mm |
| Complete module height | 90 mm |
| Complete module depth | 65.5 mm |
Material specifications
| Color | black (RAL 9005) |
| Color | Copper |
| Flammability rating according to UL 94 | V-0 |
| Housing Material | PA 6.6 |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Line & Line-Earth Ground |
| Maximum continuous voltage UC | 185 V DC |
| Maximum continuous voltage UC | 130 V AC |
| Rated current | 450 mA AC (45 °C) |
| Rated current | 130 mA DC (45 °C) |
| Operating effective current IC at UC | ≤ 10 µA |
| Residual current IPE | ≤ 10 µA |
| Nominal discharge current In (8/20) µs (line-line) | 10 kA |
| Nominal discharge current In (8/20) µs (line-ground) | 10 kA |
| Pulse discharge current Iimp (10/350) µs (line-line) | 1 kA |
| Pulse discharge current Iimp (10/350) µs (line-earth) | 1 kA |
| Total discharge current Itotal (8/20) µs | 18 kA |
| Max. discharge current Imax (8/20) µs maximum (line-earth) | 18 kA |
| Nominal pulse current Ian (10/700) µs (line-line) | 100 A |
| Nominal pulse current Ian (10/700) µs (line-earth) | 100 A |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 300 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 300 V |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 300 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 300 V |
| Residual voltage at In (conductor-conductor) | ≤ 160 V (C2 - 10 kV / 5 kA) |
| Residual voltage at In (conductor-ground) | ≤ 200 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up (line-line) | ≤ 250 V (B2 - 1 kV / 25 A) |
| Voltage protection level Up (line-line) | ≤ 300 V (B2 - 4 kV / 100 A) |
| Voltage protection level Up (line-line) | ≤ 270 V (C1 - 1 kV / 500 A) |
| Voltage protection level Up (line-line) | ≤ 300 V (C2 - 2 kV/1 kA) |
| Voltage protection level Up (line-line) | ≤ 320 V (C2 - 4 kV / 2 kA) |
| Voltage protection level Up (line-line) | ≤ 330 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up (line-earth) | ≤ 250 V (B2 - 1 kV / 25 A) |
| Voltage protection level Up (line-earth) | ≤ 300 V (B2 - 4 kV / 100 A) |
| Voltage protection level Up (line-earth) | ≤ 270 V (C1 - 1 kV / 500 A) |
| Voltage protection level Up (line-earth) | ≤ 300 V (C2 - 2 kV/1 kA) |
| Voltage protection level Up (line-earth) | ≤ 320 V (C2 - 4 kV / 2 kA) |
| Voltage protection level Up (line-earth) | ≤ 330 V (C2 - 10 kV / 5 kA) |
| Response time tA (line-line) | ≤ 500 ns |
| Response time tA (line-earth) | ≤ 500 ns |
| Input attenuation aE, sym. | typ. 0.4 dB (≤ 5 MHz / 100 Ω) |
| Cut-off frequency fg (3 dB), sym. in 100 Ω system | typ. 20 MHz |
| Capacity (core-core) | typ. 30 pF (f=1 MHz / VR= 0 V) |
| Capacity (core-earth) | typ. 30 pF (f=1 MHz / VR= 0 V) |
| Surge protection fault message | none |
| Impulse durability (line-line) | B2 - 4 kV / 100 A |
| Impulse durability (line-line) | C1 - 1 kV / 500 A |
| Impulse durability (line-line) | C2 - 10 kV / 5 kA |
| Impulse durability (line-line) | C3 - 25 A |
| Impulse durability (line-line) | D1 - 1 kA |
| Impulse durability (line-earth) | B2 - 4 kV / 100 A |
| Impulse durability (line-earth) | C1 - 1 kV / 500 A |
| Impulse durability (line-earth) | C2 - 10 kV / 5 kA |
| Impulse durability (line-earth) | C3 - 25 A |
| Impulse durability (line-earth) | D1 - 1 kA |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Standards and Regulations
| Standards/specifications | IEC 61643-21 |
| Note | 2000 |
| Standards/specifications | EN 61643-21 |
| Note | 2002 |
Mounting
| Mounting Type | on base element |
Accessories
X-PEN 0,35 - Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm
