2819804
Official DistributorSKU
PHX2819804
Weight
0.095 kg

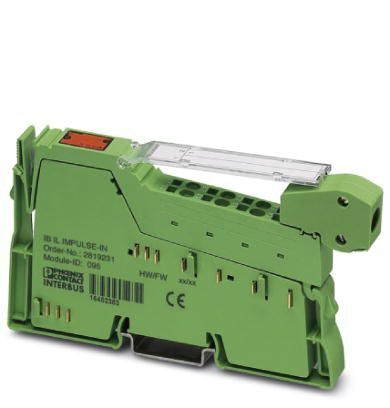

Inline function terminal - IB IL IMPULSE-IN-2MBD-PAC
Inline measurement terminal for position encoder, complete with accessories (connector and labeling field), 1 input for inductive length measuring scales with the impulse interface (P interface), transmission speed 2 Mbaud
- Encoder supply: 24 V DC
- Diagnostic and status indicators
Technical Specifications
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
Dimensions
| Width | 12.2 mm |
| Height | 135 mm |
| Depth | 71.5 mm |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 75 % ... 85 % |
| Permissible humidity (storage/transport) | 75 % ... 85 % |
| Degree of Protection | IP20 |
General
| Mounting Type | DIN rail |
| Color | green |
| Net weight | 71 g |
Interfaces
| Designation | Inline local bus |
| Connection Method | Inline data jumper |
| Transmission Speed | 2 Mbps |
Inline potentials
| Designation | Communications power (UL) |
| Supply Voltage | 7.5 V DC (via voltage jumper) |
| Current consumption | max. 100 mA |
| Designation | Main circuit supply (UM) |
| Supply Voltage | 24 V DC (via voltage jumper) |
| Current consumption | max. 250 mA (Short-circuit and overload protection) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
Accessories
Why Proax for Phoenix Contact 2819804?
Proax is an authorized distributor of Phoenix Contact 2819804 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
