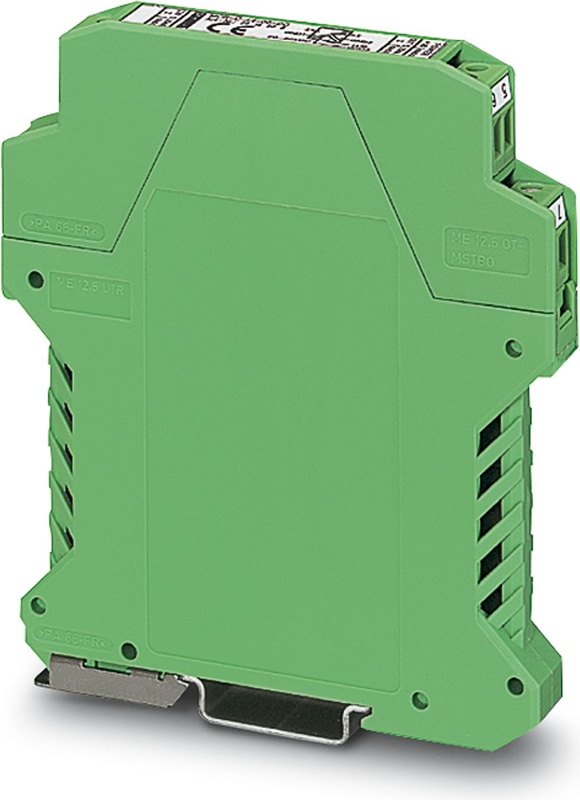

The figure shows version MCR-C-I-I-00-DC
2814472
Official DistributorSKU
PHX2814472
MPN
MCR-C-U-I- 0-DC
Weight
0.083 kg
Series MCR-C-U-I
MCR-C-U-I- 0-DC - Signal conditioner
MCR 3-way isolating amplifier, for electrical isolation of analog signals, input signal: 0 V ... 10 V, output signal: 0 mA ... 20 mA
- Processing of standard signals
- 3-way isolation
- Fixed setting of input and output signals
Technical Specifications
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product properties
| No. of channels | 1 |
Electrical properties
| Limit frequency (3 dB) | 30 Hz |
| Test voltage, input/output/supply | 1.5 kV AC (50 Hz, 60 s) |
| Protective circuit | Transient protection |
| Step response (10-90%) | 11 ms |
| Maximum temperature coefficient | < 0.015 %/K |
| Maximum transmission error | ≤ 0.2 % (of final value) |
| Transmission error, typical | < 0.1 % |
| Max. scale factor error | < 0.2 % |
Supply
| Supply Voltage Range | 20 V DC ... 30 V DC |
| Typical current consumption | < 15 mA (without load) |
Signal
| Description of the input | Voltage input |
| Configurable/programmable | no |
| Voltage input signal | 0 V ... 10 V |
| Max. voltage input signal | 30 V |
| Input resistance of voltage input | 200 kΩ |
Signal: Current output
| Configurable/programmable | no |
| Current Output Signal | 0 mA ... 20 mA |
| Max. current output signal | 30 mA |
| Load/Output Load Current Output | ≤ 500 Ω |
| Linear transmission range (in reference to the output range end value) | -5 % ... 105 % |
Connection data
| Connection Method | Pluggable screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
Data communication (bypass)
| Limit frequency (3 dB) | 30 Hz |
Dimensions
| Width | 12.5 mm |
| Height | 99 mm |
| Depth | 114.5 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing Material | Polyamide PA non-reinforced |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
CE
| Certificate | CE-compliant |
Mounting
| Mounting Position | any |
