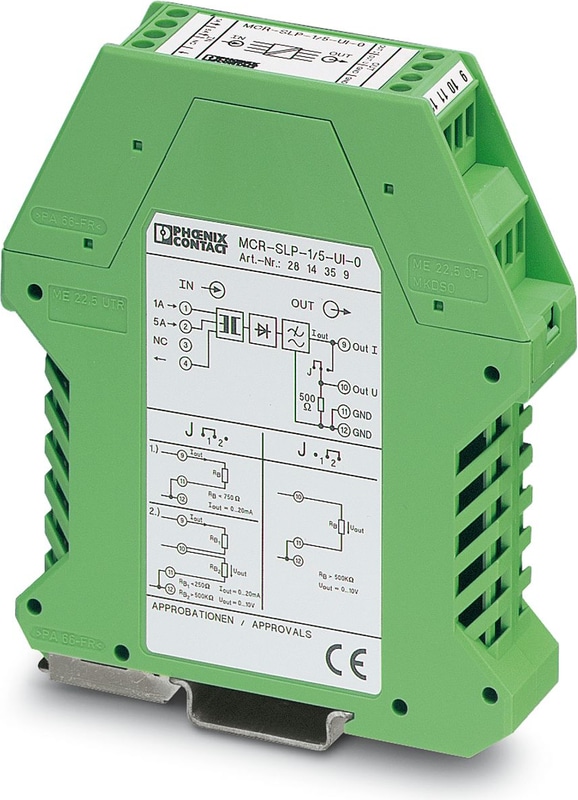

MCR-SLP-1-5-UI-0 - Current transducers
MCR passive current measuring transducer, for sinusoidal alternating currents 0..1 A AC/0..5 A AC, without switching output, output signal 0..10 V/0..20 mA
- Loop-powered
- 1 A and 5 A AC measuring ranges, reconnectable
Technical Specifications
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Total error | ≤ 1.175 % (Temperature range) |
| Test voltage | 3.5 kV |
| Measuring category | III |
| Step response (10-90%) | < 200 ms |
| Maximum temperature coefficient | < 0.015 %/K |
| Maximum transmission error | < 0.5 % (of final value) |
| Rated Insulation Voltage | 300 V AC (to earth) |
Signal
| Configurable/programmable | no |
Measurement
| Input current range | 0 A AC ... 1 A AC (Permitted continuous overload: 120%) |
| Overload capacity | 2 x IN (5 min. at 60°C ambient temperature) |
| Surge strength | 50 A (1 s) |
| Permissible output range | 1.2 x IN |
| Nominal frequency fN | 50 Hz |
| Frequency measuring range | 45 Hz ... 60 Hz |
| Power dissipation | 1.6 VA (at IA = 20 mA) |
| Curve type | Sine |
| Input current range | 0 A AC ... 5 A AC (Permitted continuous overload: 120%) |
| Impulse form | Sine |
| Overload capacity | 2 x IN (5 min. at 60°C ambient temperature) |
| Surge strength | 100 A (1 s) |
| Permissible output range | 1.2 x IN |
| Nominal frequency fN | 50 Hz |
| Frequency measuring range | 45 Hz ... 60 Hz |
| Power dissipation | 2.2 VA (I = 20 mA) |
Signal: Voltage
| Voltage output signal | 0 V ... 10 V |
| Max. voltage output signal | 20 V |
| Load/output load voltage output | > 100 kΩ |
| Ripple | < 50 mVPP |
Signal: Current
| Current Output Signal | 0 mA ... 20 mA |
| Max. current output signal | 30 mA |
| Load/Output Load Current Output | < 750 Ω |
| Load/Output Load Current Output | < 250 Ω (when current and voltage outputs are used simultaneously) |
| Ripple | < 50 mVPP |
| Residual ripple, in reference to the measured value | 0.5 % (pp of measured value) |
Connection data
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
Item dimensions
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 114.5 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing Material | Polyamide PA non-reinforced |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 80 °C (non-condensing) |
| Altitude | < 2000 m |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
CE
| Certificate | CE-compliant |
EMC data
| Noise immunity | EN 61000-6-2 |
| Note | When being exposed to interference, there may be minimal deviations. |
| Electromagnetic compatibility | Conformance with EMC directive |
| Noise emission | EN 61000-6-4 |
Standards and Regulations
| Standards/regulations | IEC 61010-2-030 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | < 50 °C: any; > 50 °C: vertical (installation on horizontal DIN rail) |
