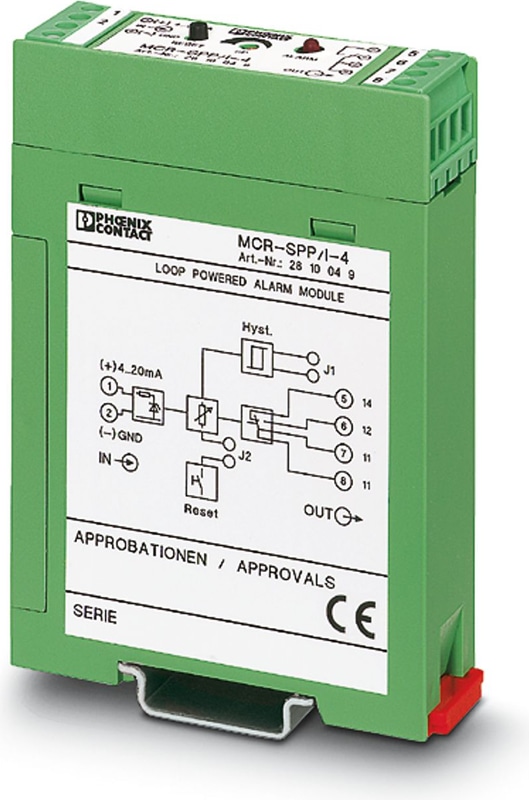

MCR-SPP-I-4 - Limit value switch
MCR threshold value switches, with hysteresis and relay, input signal 4..20 mA
Technical Specifications
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product properties
| No. of channels | 1 |
Electrical properties
| Electrical isolation between input and output | No |
| Step response (10-90%) | 2 ms |
| Maximum temperature coefficient | ≤ 0.01 %/K |
Signal
| Description of the input | Current input |
| Current Input Signal | 4 mA ... 20 mA |
| Voltage dissipation | approx. 7 V (6.7 V ... 7.5 V) |
| Min setting range of the current threshold value | 4 mA ... 20 mA |
| Setting range of the current hysteresis | 0.1 mA ... 1 mA |
| Internal current hysteresis | ± 60 µA (around the lower/upper switching point) |
Switching: Relay
| Contact switching type | 1 changeover contact |
| Contact Material | Rhodium |
| Maximum Switching Voltage | 150 V DC |
| Maximum Switching Voltage | 125 V AC |
| Max. switching current | 1 A |
| Interrupting rating (ohmic load) max. | 30 W (with DC) |
| Interrupting rating (ohmic load) max. | 60 VA (with AC) |
| Mechanical service life | < 109 cycles |
| Status display | LED |
Connection data
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
Dimensions
| Width | 22.5 mm |
| Height | 75 mm |
| Depth | 110 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing Material | ABS |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 65 °C |
| Ambient temperature (storage/transport) | -20 °C ... 65 °C |
CE
| Certificate | CE-compliant |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | any |
