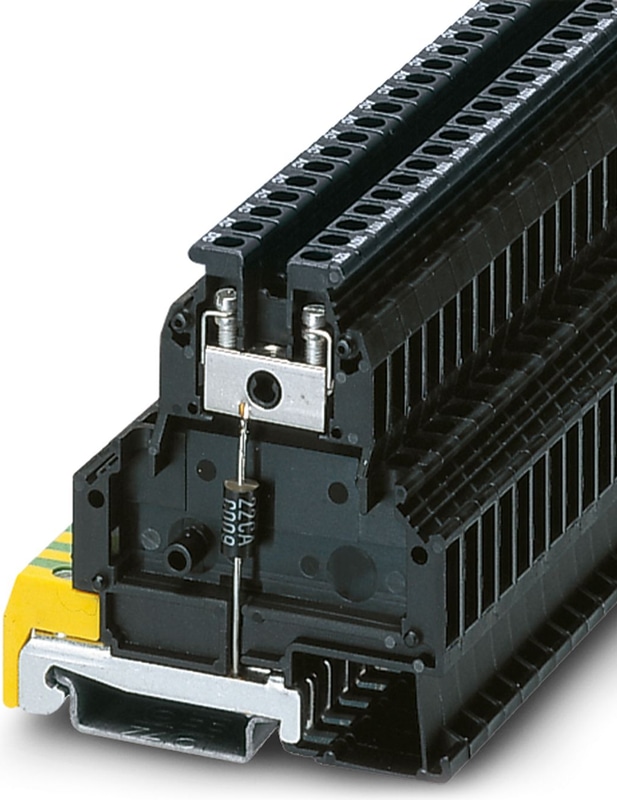

The figure shows version TT-SLKK5-S- 5 DC
2809623
Official DistributorSKU
PHX2809623
MPN
TT-SLKK5-S- 60DC
Weight
0.019 kg
Series TT-SLKK
TT-SLKK5-S- 60DC - Surge protection device
Terminal block with suppressor diode as surge voltage protection between clamping connector and DIN rail, separate ground connection, nominal voltage: 60 V DC, mounting on NS 35/7.5, terminal width: 6.2 mm, terminal height: 69 mm
Technical Specifications
Product properties
| IEC test classification | C3 |
| VDE requirement class | C3 |
| Type | Single-level terminal block – separate PE connection |
Electrical properties
| Nominal voltage UN | 60 V DC |
Connection data
| Connection Method | Screw connection |
| Screw thread | M3 |
| Tightening torque, min | 0.5 Nm |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 4 mm² |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 4 mm² |
Dimensions
| Width | 6.2 mm |
| Height | 66.5 mm |
| Depth | 69.5 mm |
Material specifications
| Flammability rating according to UL 94 | V2 |
| Housing Material | PA |
Mechanical data
| Open side panel | Yes |
Protective circuit
| Direction of action | Line-Earth Ground |
| Maximum continuous voltage UC | 70 V DC |
| Maximum continuous voltage UC | 49 V AC |
| Maximum continuous voltage UC (line-earth) | 70 V DC |
| Maximum continuous voltage UC (line-earth) | 49 V AC |
| Residual current IPE | ≤ 5 µA |
| Nominal discharge current In (8/20) µs (line-ground) | 69 A |
| Total surge current (8/20) µs | 69 A |
| Max. discharge current Imax (8/20) µs maximum (line-earth) | 69 A |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 13.3 A |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 101 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 101 V |
| Residual voltage at In (conductor-ground) | ≤ 146 V |
| Response time tA (line-earth) | ≤ 1 ns |
| Cut-off frequency fg (3 dB), asym. (PE) in 150 Ω system | typ. 3.5 MHz |
| Capacity (core-earth) | 0.68 nF |
| Impulse durability (line-earth) | C3 - 10 A |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
Standards and Regulations
| VDE requirement class | C3 |
Standards Information technology specification
| Standards/regulations | IEC 61643-21 |
| Standards/regulations | IEC 61643-21 |
Mounting
| Mounting Type | DIN rail: 35 mm |
