TT-SLKK 5-C 3N3-230AC
Weight
0.019 kg
Series TT-SLKK
TT-SLKK 5-C 3N3-230AC - EMC filter

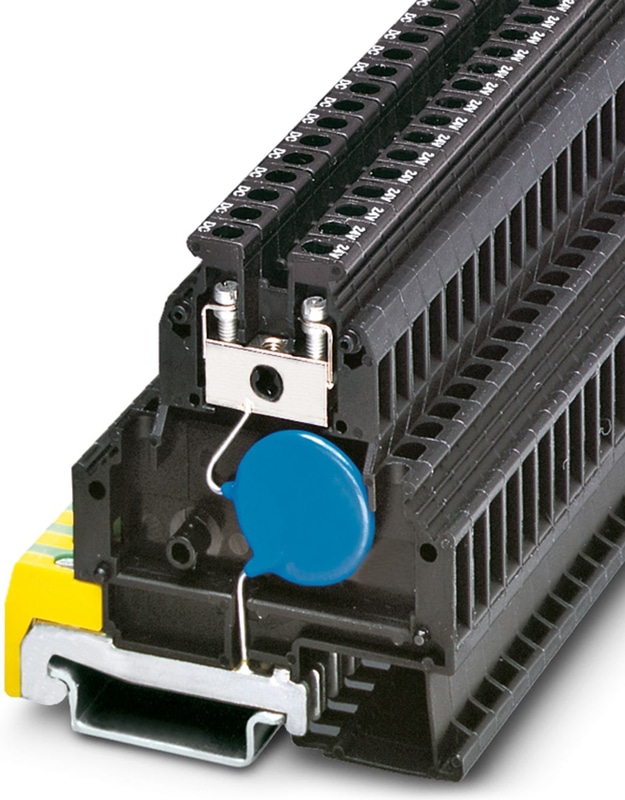

Terminal block with radio interference suppression capacitor between clamping connector and DIN rail, separate ground connection, nominal voltage: 3.3 nF, for mounting on NS 35/7.5, terminal width: 6.2 mm, terminal height: 69 mm
- Space-saving and cost-saving with a narrow overall width of just 6 mm
- Cost-optimized with tailored product features
- No useful signal interference with balanced low-pass
Technical Specifications
Product properties
| Type | Single-level terminal block – separate PE connection |
| Number of Positions | 1 |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 230 V AC |
Connection data
| Connection Method | Screw connection |
| Screw thread | M3 |
| Tightening torque | 0.5 Nm |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Width | 6.2 mm |
| Height | 66.5 mm |
| Depth | 69.5 mm |
Material specifications
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V-2 |
| Housing Material | PA |
Mechanical data
| Open side panel | Yes |
Protective circuit
| Direction of action | Line-Earth Ground |
| Maximum continuous voltage UC | 250 V AC |
| Rated current | 30 A (45 °C) |
| Residual current IPE | typ. 0.5 mA |
| Cut-off frequency fg (3 dB), asym. (PE) in 50 Ω system | typ. 2 MHz |
| Cut-off frequency fg (3 dB), asym. (PE) in 150 Ω system | typ. 550 kHz (50 Hz) |
| Cut-off frequency fg (3 dB), asym. (PE) in 600 Ω system | typ. 170 kHz |
| Capacity (core-earth) | typ. 3.3 nF |
| Capacity (core-earth) | Y2 |
Ambient conditions
| Degree of Protection | IP20 (with end cover) |
| Ambient Temperature (Operation) | -20 °C ... 85 °C |
Standards and Regulations
| Standards/specifications | EN 60947-7-1 |
| Note | 2009 |
| Standards/specifications | EN 60947-4-2 |
| Note | 2009 |
| Standards/specifications | EN 60384-14 |
Mounting
| Mounting Type | DIN rail: 35 mm |
Accessories
DP-UKK 3/5 BK - Spacer plate, to compensate for level offsets, depth: 25 mm, width: 2.5 mm, height: 56 mm, color: black
