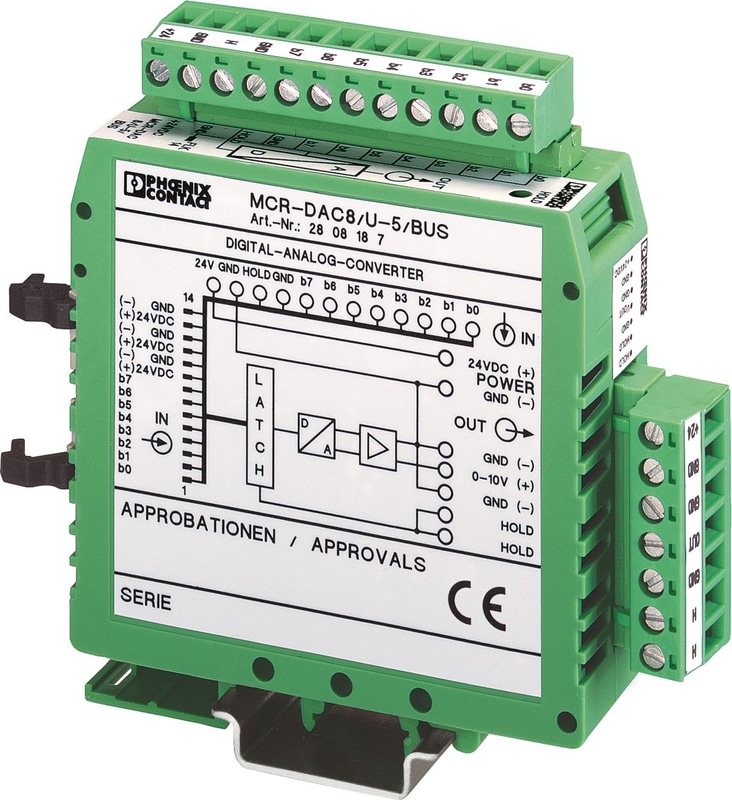

The figure shows version MCR-DAC 8-U-5-BUS
2808190
Official DistributorSKU
PHX2808190
MPN
MCR-DAC 8-U-10-BUS
Weight
0.151 kg
This product is Not Cancellable/Not Returnable
Series MCR-DAC
MCR-DAC 8-U-10-BUS - Converter
MCR 8-bit digital/analog converters, with flat-ribbon cable connection and COMBICON connector, pitch 5.08 mm, output signal 0..10 V
Documents
Technical Specifications
Electrical properties
| Maximum power dissipation for nominal condition | < 480 mW |
| Protective circuit | Protection against polarity reversal, suppressor diode |
| Maximum transmission error | ±1 LSB, for 25 °C |
Supply
| Nominal Supply Voltage | 24 V DC ±10 % |
| Supply Voltage Range | 22 V DC ... 26 V DC |
| Max. current consumption | 20 mA |
Signal D/A converter
| Input signal digital | 8 bit (1 leading sign) |
| Input voltage range | 24 V DC ... 30 V DC |
| Signal level "1" signal | ≥ 15 V DC |
| Signal level "0" signal | ≤ 2 V DC |
| Max. current input signal | ≤ 1 mA |
| Input resistance of voltage input | ≥ 5.7 kΩ |
| Protective circuit | Surge protection; Suppressor diode, 36 V / 1500 W |
Signal
| Output Current | 5 mA |
Signal: Voltage output
| Voltage output signal | 0 V ... 10 V |
| Load/output load voltage output | ≥ 2 kΩ |
| Resolution, outputs (voltage) | approx. 39 mV |
| D/A conversion time | ≤ 25 µs |
Connection data
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
Dimensions
| Width | 25 mm |
| Height | 79 mm |
| Depth | 93 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing Material | Polyamide PA non-reinforced |
Ambient conditions
| Ambient Temperature (Operation) | 0 °C ... 55 °C |
CE
| Certificate | CE-compliant |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | any |
