2805392
Official DistributorSKU
PHX2805392
MPN
F-MS 2200/30 ST
Weight
0.037 kg
Series F-MS

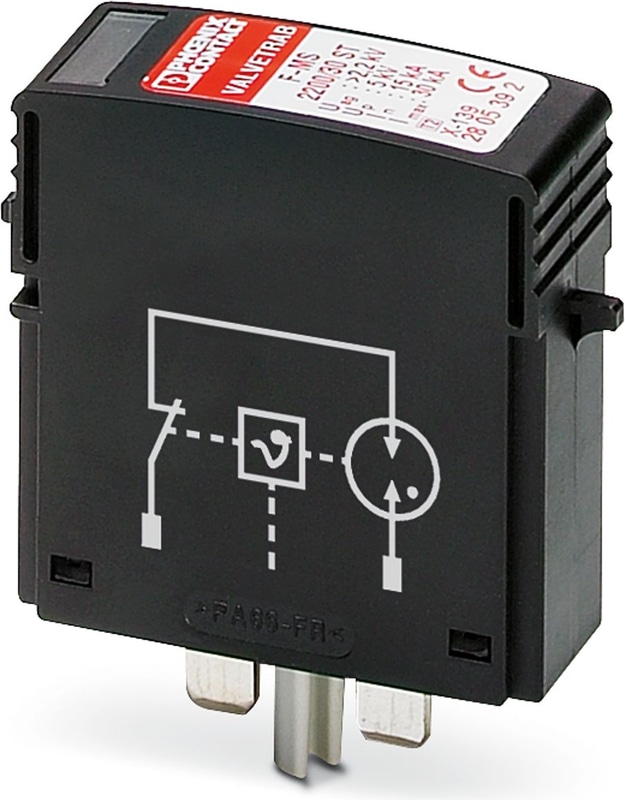

F-MS 2200/30 ST - Type 2 surge protection plug
Surge protection plug type 2, spark gap with high insulation voltage strength, used only as replacement plug for the corresponding complete item.
Technical Specifications
General
| Note | The F-MS 2200/30 ST protective plug is only to be used in connection with VAL-MS 750/30 ST (2920256) in series connection. It is not designed to be directly used on the mains voltage. Replacement plugs for use on product VAL-MS 800/30-VF/FM (2805402). |
| Note | VSDC > 2500 V |
Product properties
| Product family | VALVETRAB MS |
| IEC test classification | II |
| IEC test classification | T2 |
| EN type | T2 |
| IEC power supply system | TN |
| IEC power supply system | TT |
| Type | DIN rail module, two-section, divisible |
| Distance between live and grounded parts | 8 mm |
| Number of Positions | 1 |
| Surge protection fault message | optical |
Insulation characteristics
| Overvoltage category | IV |
| Pollution degree | 3 |
Electrical properties
| Nominal frequency fN | 50 Hz |
| Nominal frequency fN | 60 Hz |
Connection data
| Connection Method | pluggable |
Dimensions
| Width | 17.5 mm |
| Height | 52.4 mm |
| Depth | 55.3 mm |
| Horizontal pitch | 1 Div. |
Material specifications
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 600 |
| Insulating material | PA 6.6 |
| Material group | I |
| Housing Material | PA 6.6 |
Protective circuit
| Mode of protection | L-PE |
| Direction of action | N-PE |
| Nominal frequency fN | 50 Hz |
| Nominal frequency fN | 60 Hz |
| Residual current IPE | ≤ 3 µA |
| Nominal discharge current In (8/20) µs | 15 kA |
| Maximum discharge current Imax (8/20) µs | 30 kA |
| Short-circuit current rating ISCCR | 25 kA |
| Voltage protection level Up | ≤ 5 kV |
| Residual voltage Ures | ≤ 0.4 kV (at In) |
| Residual voltage Ures | ≤ 0.25 kV (at 10 kA) |
| Residual voltage Ures | ≤ 0.15 kV (at 5 kA) |
| Residual voltage Ures | ≤ 0.1 kV (at 3 kA) |
| Front of wave sparkover voltage at 6 kV (1.2/50) µs | ≤ 5 kV |
| TOV behavior at UT | 1550 V AC (200 ms / withstand mode) |
| Response time tA | ≤ 100 ns |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 25g |
| Vibration (Operation) | 5g |
Air clearances and creepage distances
| Standards/regulations | EN 60664-1 / EN 61643-11 |
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
| Standards/specifications | EN 61643-11 |
| Note | 2012 |
Mounting
| Mounting Type | on base element |
