2800792
Official DistributorSKU
PHX2800792
MPN
PT-IQ-1X2+F-5DC-UT
Weight
0.112 kg
Series PT-IQ

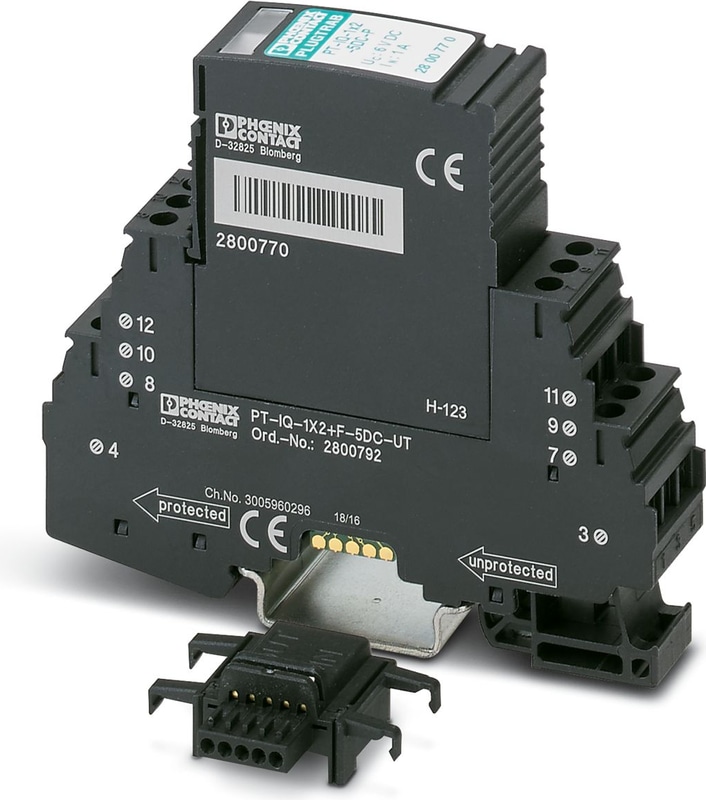

PT-IQ-1X2+F-5DC-UT - Surge protection device
Surge protection, consisting of protective plug and base element, with integrated multi-stage status indicator on the module for one 2-wire floating signal circuit. Indirect grounding via gas-filled surge arrester.
Technical Specifications
General
| Note | Remote signaling as well as the power supply of the DIN rail connector are established by snapping the module into place on the DIN rail connector. |
Product properties
| Product family | PLUGTRAB IQ |
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| Type | DIN rail module, two-section, divisible |
| Surge protection fault message | Optical, multi-stage |
| Wire pairs per module | 1 |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 5 V DC |
Connection data
| Connection Method | Screw connection |
| Screw thread | M3 |
| Tightening torque | 0.5 Nm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Width | 17.7 mm |
| Height | 91.1 mm |
| Depth | 77.5 mm (incl. DIN rail 7.5 mm) |
| Horizontal pitch | 1 Div. |
Material specifications
| Flammability rating according to UL 94 | V-0 |
| Housing Material | PA 6.6 |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground |
| Maximum continuous voltage UC | 6 V DC |
| Maximum continuous voltage UC | 4 V AC |
| Rated current | 1000 mA (40 °C) |
| Operating effective current IC at UC | ≤ 2 mA (in the signal circuit) |
| Residual current IPE | ≤ 1 µA |
| Nominal discharge current In (8/20) µs (line-line) | 10 kA |
| Nominal discharge current In (8/20) µs (line-ground) | 10 kA |
| Pulse discharge current Iimp (10/350) µs (line-earth) | 2.5 kA |
| Total discharge current Itotal (8/20) µs | 20 kA |
| Voltage protection level Up (line-line) | ≤ 85 V (C1 - 1 kV / 500 A) |
| Voltage protection level Up (line-line) | ≤ 110 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up (line-line) | ≤ 140 V (C2 - 10 kA) |
| Voltage protection level Up (line-line) | ≤ 25 V (C3 - 25 A) |
| Voltage protection level Up (line-line) | ≤ 25 V (C3 - 50 A) |
| Voltage protection level Up (line-earth) | ≤ 900 V (C1 - 1 kV / 500 A) |
| Voltage protection level Up (line-earth) | ≤ 1300 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up (line-earth) | ≤ 1200 V (C2 - 10 kA) |
| Voltage protection level Up (line-earth) | ≤ 1000 V (C3 - 25 A) |
| Voltage protection level Up (line-earth) | ≤ 1300 V (C3 - 100 A) |
| Voltage protection level Up (line-signalground) | ≤ 600 V (C1 - 1 kV / 500 A) |
| Voltage protection level Up (line-signalground) | ≤ 750 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up (line-signalground) | ≤ 800 V (C2 - 10 kA) |
| Voltage protection level Up (line-signalground) | ≤ 700 V (C3 - 25 A) |
| Voltage protection level Up (line-signalground) | ≤ 800 V (C3 - 100 A) |
| Voltage protection level Up static (line-line) | ≤ 26 V (C1 - 1 kV / 500 A) |
| Voltage protection level Up static (line-line) | ≤ 70 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up static (line-line) | ≤ 30 V (C2 - 10 kA) |
| Response time tA (line-line) | ≤ 1 ns |
| Response time tA (line-earth) | ≤ 100 ns |
| Response time tA (line-signalground) | ≤ 100 ns |
| Input attenuation aE, sym. | typ. 0.3 dB (≤ 40 kHz/150 Ω) |
| Cut-off frequency fg (3 dB), sym. in 150 Ω system | typ. 300 kHz |
| Capacity (core-earth) | typ. 7.5 nF |
| Resistance per path | 1.2 Ω ±5 % |
| Surge protection fault message | Optical, multi-stage |
| Max. required back-up fuse | 1 A (FF) |
| Impulse durability (line-line) | C1 - 1 kV / 500 A |
| Impulse durability (line-line) | C2 - 10 kV / 5 kA |
| Impulse durability (line-line) | C2 - 10 kA |
| Impulse durability (line-line) | C3 - 50 A |
| Impulse durability (line-earth) | C1 - 1 kV / 500 A |
| Impulse durability (line-earth) | C2 - 10 kV / 5 kA |
| Impulse durability (line-earth) | C2 - 10 kA |
| Impulse durability (line-earth) | C3 - 100 A |
| Impulse durability (line-earth) | D1 - 2.5 kA |
| Impulse durability (line-signalground) | C1 - 1 kV / 500 A |
| Impulse durability (line-signalground) | C2 - 10 kV / 5 kA |
| Impulse durability (line-signalground) | C2 - 10 kA |
| Impulse durability (line-signalground) | C3 - 100 A |
| Impulse durability (line-signalground) | D1 - 2,5 kA |
| Pulse reset time (line-line) | ≤ 10 ms |
| Pulse reset time (line-earth) | ≤ 10 ms |
| Pulse reset time (line-signalground) | ≤ 10 ms |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 4000 m (amsl) |
Standards and Regulations
| Standards/specifications | IEC 61643-21 |
| Note | 2000 + A1:2008, modified |
| Standards/specifications | EN 61643-21 |
| Note | 2001 + A1:2009 |
| Standards/specifications | EN 61000-6-3 |
| Note | 2007 + A1:2011 |
| Standards/specifications | EN 61000-6-2 |
| Note | 2005 |
Mounting
| Mounting Type | DIN rail: 35 mm |
Accessories
X-PEN 0,35 - Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm
FK-MC 0,5/ 5-ST-2,5 - PCB connector, nominal cross section: 0.5 mm2, color: green, nominal current: 4 A, rated voltage (III/2): 160 V, contact surface: Tin, contact connection type: Socket, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range: FK-MC 0,5/..-ST, pitch: 2.5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, plug-in system: COMBICON FK-MC 0,5, locking: without, mounting: without, type of packaging: packed in cardboard
