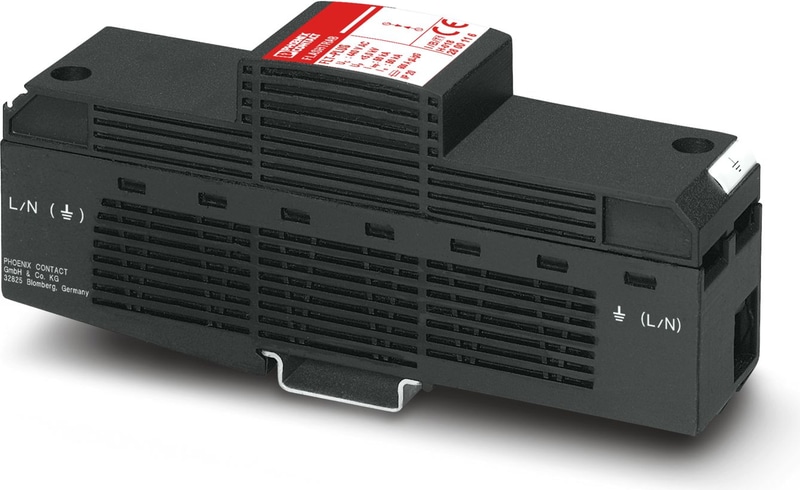

FLT-PLUS - Type 1+2 combined lightning current and surge arrester

Type 1/Class I (lightning current arrester) with arc chopping spark gap, quenching plates for high follow current quenching capacity, 1-channel. Housing width: 35 mm (2 Div.)

Product properties

IEC test classification	I
IEC test classification	T1
EN type	T1
IEC power supply system	TT
IEC power supply system	TN-C
IEC power supply system	TN-S
Type	DIN rail module, one-piece
Number of Positions	1
Surge protection fault message	none

Insulation characteristics

Overvoltage category	III
Pollution degree	2

Electrical properties

Nominal frequency f_N

50 Hz (60 Hz)

Connection data

Connection Method	Screw connection
Screw thread	M6
Tightening torque	8 Nm
Stripping length	19 mm
Conductor cross section flexible	16 mm² ... 35 mm²
Conductor cross section rigid	10 mm² ... 50 mm²
Conductor cross section AWG	6 ... 1

Dimensions

Width	35.5 mm
Height	150 mm
Depth	65.6 mm
Horizontal pitch	2 Div.

Material specifications

Color	black (RAL 9005)
Flammability rating according to UL 94	V-0
CTI value of material	600
Insulating material	PA 6.6
Material group	I
Housing Material	PA 6.6

Mechanical data

Open side panel

Protective circuit

Mode of protection	L-PEN
Direction of action	1L-N/PE
Nominal voltage U_N	230/400 V AC (TN)
Nominal voltage U_N	230/400 V AC (TT)
Nominal frequency f_N	50 Hz (60 Hz)
Maximum continuous voltage U_C	440 V AC
Rated load current I_L	80 A
Residual current I_PE	≤ 0.1 mA
Standby power consumption P_C	≤ 44.00 mVA
Nominal discharge current I_n (8/20) µs	50 kA
Impulse discharge current (10/350) µs, charge	25 As
Impulse discharge current (10/350) µs, specific energy	625 kJ/Ω
Impulse discharge current (10/350) µs, peak value l_imp	50 kA
Follow current interrupt rating I_fi	25 kA
Short-circuit current rating I_SCCR	25 kA
Voltage protection level U_p	≤ 5 kV
Front of wave sparkover voltage at 6 kV (1.2/50) µs	≤ 5 kV
TOV behavior at U_T	440 V AC (5 s / withstand mode)
TOV behavior at U_T	440 V AC (120 min / withstand mode)
Response time t_A	≤ 100 ns
Max. backup fuse with V-type through wiring	80 A AC (gG)
Max. backup fuse with branch wiring	500 A AC (gG)

Ambient conditions

Degree of Protection	IP20 (only when all terminal points are used)
Ambient Temperature (Operation)	-40 °C ... 85 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Altitude	≤ 2000 m (amsl)
Permissible humidity (operation)	5 % ... 95 %

Standards and Regulations

Standards/specifications	IEC 61643-11
Note	2011
Standards/specifications	EN 61643-11
Note	2012

Mounting

Mounting Type

DIN rail: 35 mm

3022218
CLIPFIX 35 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
1051993
Marker pen - B-STIFT
2749589
2749589 -
2749576
2749576 -
2809128
2809128 -
2809238
MPB 18/1-57 - Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 57-pos.
2748593
MPB 18/1-12 - Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 12-pos.
2748580
MPB 18/1- 9 - Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 9-pos.
2748577
MPB 18/1- 8 - Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 8-pos.
2748564
MPB 18/1- 6 - Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 6-pos.
2809225
MPB 18/1- 4 - Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 4-pos.
2809212
MPB 18/1- 3 - Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 3-pos.
2809209
MPB 18/1- 2 - Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 2-pos.
