2797858
Official DistributorSKU
PHX2797858
MPN
C-UFB- 5DC
Weight
0.086 kg
Series C-UFB

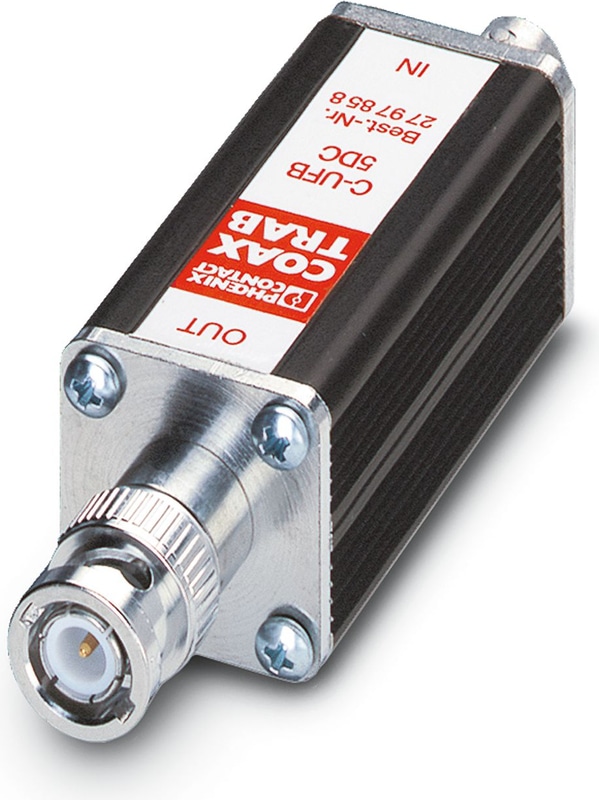

C-UFB- 5DC - Surge protection device
Attachment plug with surge voltage coarse and fine protection, for coaxial signal interfaces, signal voltage 5 V. Connection: BNC socket/plug
Technical Specifications
Product properties
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| Type | Attachment plug |
| Surge protection fault message | none |
Connection data
| Connection Method | BNC 50 Ω |
Dimensions
| Width | 25.4 mm |
| Height | 93 mm |
| Length | 25.4 mm |
Material specifications
| Housing Material | Aluminum |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Shield/Earth Ground |
| Maximum continuous voltage UC | 5 V DC |
| Maximum continuous voltage UC (line-earth) | 5 V DC |
| Operating effective current IC at UC | ≤ 300 µA |
| Residual current IPE | ≤ 300 µA |
| Nominal discharge current In (8/20) µs (line-ground) | 10 kA |
| Nominal discharge current In (8/20) µs (line-shield) | 10 kA |
| Total surge current (8/20) µs | 10 kA |
| Max. discharge current Imax (8/20) µs maximum (line-earth) | 10 kA |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 25 V |
| Output voltage limitation at 1 kV/µs (line-shield) spike | ≤ 25 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 15 V |
| Output voltage limitation at 1 kV/µs (line-shield) static | ≤ 15 V |
| Residual voltage at In (conductor-ground) | ≤ 22 V |
| Residual voltage at In (conductor-shield) | ≤ 22 V |
| Voltage protection level Up (line-earth) | ≤ 120 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up (line-earth) | ≤ 45 V (C1 - 1 kV / 500 A) |
| Voltage protection level Up (line-earth) | ≤ 20 V (C3 - 10 A) |
| Voltage protection level Up (line-shield) | ≤ 120 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up (line-shield) | ≤ 45 V (C1 - 1 kV / 500 A) |
| Voltage protection level Up (line-shield) | ≤ 20 V (C3 - 10 A) |
| Voltage protection level Up static (line-earth) | ≤ 35 V (C1 - 1 kV / 500 A) |
| Voltage protection level Up static (line-earth) | ≤ 70 V (C2 - 10 kV / 5 kA) |
| Response time tA (line-earth) | ≤ 500 ns |
| Response time tA (line-shield) | ≤ 500 ns |
| Input attenuation aE, asym. | 2 dB (≤ 10 MHz) |
| Cut-off frequency fg (3 dB), asym. (PE) in 50 Ω system | typ. 90 MHz |
| Cut-off frequency fg (3 dB), asym. (shield) in 50 Ω system | typ. 90 MHz |
| Surge protection fault message | none |
| Impulse durability (line-earth) | C2 - 10 kV / 5 kA |
| Impulse durability (line-earth) | D1 - 2.5 kA |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
Air clearances and creepage distances
| Standards/regulations | VDE 0110-1 / IEC 60664-1 |
Standards Information technology specification
| Standards/regulations | IEC 61643-21 |
| Standards/regulations | IEC 61643-21 |
| Standards/specifications | IEC 61643-21 |
| Note | 2000 |
Mounting
| Mounting Type | Connection-specific intermediate plugging |
Why Proax for Phoenix Contact 2797858?
Proax is an authorized distributor of Phoenix Contact 2797858 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
