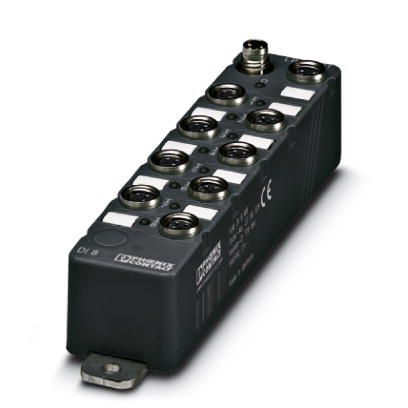

Distributed I/O device - FLM DI 8 M8-2MBD

The space-saving local bus device is particularly suitable for use in close proximity to the process. Functions: 2 Mbaud, 8 digital inputs with 3 ms filter time, channel-specific diagnostics, short-circuit/overload protection, 600 mA nominal current, M8 connection method.

Can also be connected to an Inline station
Optimized for 30 mm mounting profile
Diagnostic and status indicators
Short-circuit and overload protection
Consistent connection via M8 connectors

Note

Utilization restriction

EMC: class A product, see manufacturer's declaration in the download area

Dimensions

Caption	Side view (dimensions in mm)
Width	29.8 mm
Height	143 mm
Depth	26.5 mm
Note on dimensions	Length details incl. fixing clips
Drill hole spacing	133 mm

Ambient conditions

Ambient Temperature (Operation)	-25 °C ... 60 °C
Ambient temperature (storage/transport)	-25 °C ... 85 °C
Permissible humidity (operation)	5 % ... 95 %
Permissible humidity (storage/transport)	10 % ... 95 %
Air pressure (operation)	80 kPa ... 106 kPa (up to 2000 m above sea level)
Air pressure (storage/transport)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Degree of Protection	IP65/IP67

General

Mounting Type	Wall mounting
Color	black
Net weight	137 g

Interfaces

Designation	Fieldline local bus
Connection Method	M8 connector
Designation connection point	Copper cable
Transmission Speed	2 Mbps
Number of Positions	4

Power supply for module electronics

Connection Method	M8 connector
Designation	U_L
Number of Positions	4
Supply Voltage	24 V DC
Supply Voltage Range	18 V DC ... 30 V DC (including ripple)
Supply current	3 A

Fieldline potentials

Voltage supply U_L

24 V DC

Digital inputs

Input name	Digital inputs
Description of the input	IEC 61131-2 type 1
Connection Method	M8 connector
Connection technology	2-, 3-conductor
Number of Inputs	8
Protective circuit	Reverse polarity protection
Nominal input voltage U_IN	24 V DC
Filter time	3 ms
Input Voltage	24 V DC
Input voltage range "0" signal	-30 V DC ... 5 V DC
Input voltage range "1" signal	13 V DC ... 30 V DC

Electrical isolation

Test section

To I/O 500 V AC

Standards and Regulations

Protection class

III (IEC 61140, EN 61140, VDE 0140-1)

Environmental Product Compliance

REACh SVHC	Lead 7439-92-1
China RoHS	Environmentally Friendly Use Period = 50 years
China RoHS	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
