2773429
Official DistributorSKU
PHX2773429
Weight
0.23 kg
This product is Not Cancellable/Not Returnable

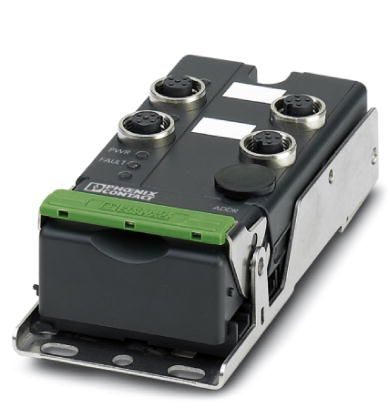

Distributed I/O device - FLX ASI DI 4 M12
AS-i digital input module, AB slave, 4 digital inputs, 24 V DC, 2, 3 and 4-conductor connection method, IP67 protection
- Tool-free connection to AS-Interface using penetration technique
- M12 connection technology with SPEEDCON fast locking system for the inputs and outputs
- Optimized for direct mounting and DIN rail mounting
Technical Specifications
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
Dimensions
| Width | 58 mm |
| Height | 118 mm |
| Depth | 35 mm |
| Drill hole spacing | 108 mm |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 70 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Degree of Protection | IP65/IP67 |
Interfaces
| Designation | AS-Interface |
| Connection Method | Flat-ribbon cable penetration technique |
| Designation connection point | AS-i |
| Transmission Speed | 167 kbps |
| Number of Positions | 2 |
AS-Interface
| Slave type | A/B slave |
| AS-i specification | 2.1 |
| IO code | 0 |
| ID1 code | 7 |
| ID2 code | 2 |
| ID code (hex) | A |
| ID code (dec.) | 10 |
| AS-i profile | S-0.A.2 |
| Required master specification | >= 2.0 |
Digital inputs
| Input name | Digital inputs |
| Description of the input | IEC 61131-2 Type 2 |
| Connection Method | M12 connector |
| Connection technology | 2-, 3-conductor |
| Number of Inputs | 4 |
| Delay at signal change from 0 to 1 | 2 ms |
| Delay at signal change from 1 to 0 | 2 ms |
General
| Mounting Type | Wall mounting |
| Color | black |
| Net weight | 195 g |
| Mounting Type | Screw on directly or on DIN rail |
| Mounting Position | any |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
Accessories
VS-ASI-FC-EPDM-YE 1000M - AS-Interface EPDM flat conductor in yellow, 2 x 1.5 mm2, 1000 m on a disposable drum- VS-ASI-FC-TPE-UL-YE 100M - AS-Interface TPE flat conductor with UL in yellow, 2 x 1.5 mm2, 100 m ring
- VS-ASI-FC-PVC-UL-YE 100M - AS-Interface PVC flat conductor with UL in yellow, 2 x 1.5 mm2, 100 m ring
- VS-ASI-FC-PVC-UL-YE/1000 - AS-Interface PVC flat conductor with UL in yellow, 2 x 1.5 mm2, 1000 m on an one-way drum
