Phoenix Contact 2770859
AllConnectorsTerminal blocksAccessories

2770859

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX2770859
MPN
DG-UKKB 3/ 5
Weight
0.005 kg

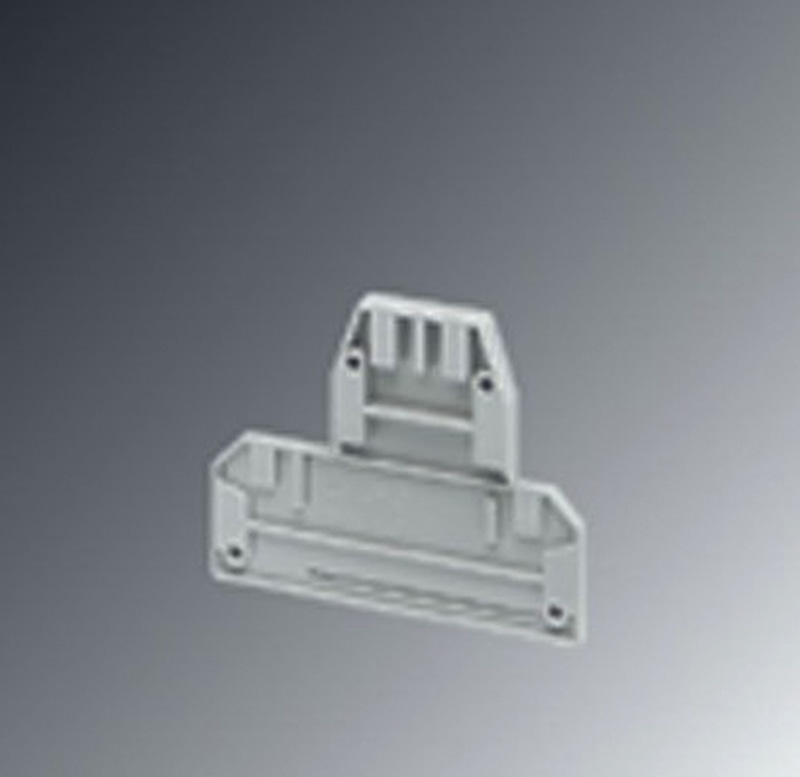

DG-UKKB 3/ 5 - Spacer plate

Spacer plate, to compensate for level offsets, width: 2.5 mm, height: 67 mm, color: gray

Technical Specifications

Ambient conditions

Ambient Temperature (Operation)-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (storage/transport)30 % ... 70 %

Material specifications

Colorgray
Flammability rating according to UL 94V0

Dimensions

Width2.5 mm
Height67 mm
Depth on NS 35/7,585 mm
Depth on NS 35/1592.5 mm

Why Proax for Phoenix Contact 2770859?

Proax is an authorized distributor of Phoenix Contact 2770859 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size50
