OS32FF1214
Official DistributorBy ABB
SKU
ABBOS32FF1214
MPN
1SCA108642R1001
Weight
0.7 kg

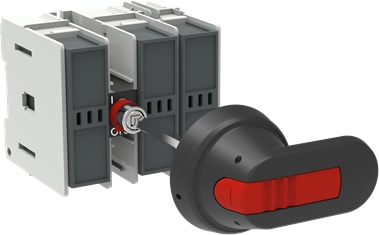

Switch-disconnector fuse, 32A, 3-pole, NFC 14x51, front operated, handle and shaft included.
Technical Specifications
ABB EcoSolutions
| Environmental Product Declaration - EPD | 1SCC311204D0201 |
Dimensions
| Product Net Width | 106 mm |
| Product Net Height | 97 mm |
| Product Net Depth / Length | 105 mm |
| Product Net Weight | 0.7 kg |
Technical
| Cable Cross-Section | 0.75 ... 10 mm² |
| Connecting Capacity | Stranded 0.75 … 10 mm² |
| Connecting Capacity | Flexible 0.75 … 10 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 32 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | 14x51 |
| Fuse System | NFC |
| Handle Type | Handle not included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating mode | Front |
| Pollution degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 2 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Rated Current (In) | Main Circuit 32 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 32 A |
| Rated Operational Current AC-21A (Ie) | (690 V) 32 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 32 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 32 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 32 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 32 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 7.5 kW |
| Rated Operational Power AC-23A (Pe) | (400 V) 15 kW |
| Rated Operational Power AC-23A (Pe) | (415 V) 15 kW |
| Rated Operational Power AC-23A (Pe) | (500 V) 18.5 kW |
| Rated Operational Power AC-23A (Pe) | (690 V) 22 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1 kiloampere rms |
| Recommended Screw Driver | Main Circuit Slot |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Screw Terminals |
| Tightening torque | 2 N·m |
| Wire Stripping Length | Main Circuit 12...14 mm |
| Wire Stripping Length | Main Circuit 0.47…0.55 in |
Technical UL/CSA
| Wire Stripping Length | Main Circuit 12...14 mm |
| Wire Stripping Length | Main Circuit 0.47…0.55 in |
| Recommended Screw Driver | Main Circuit Slot |
| Tightening torque | 2 N·m |
