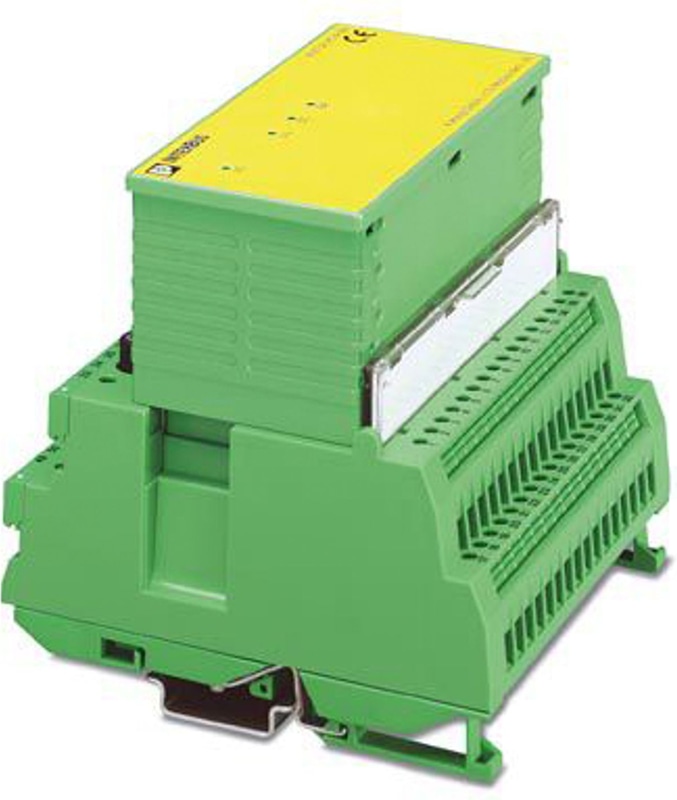

The figure shows version IB ST 24 AO 4/SF
2750578
Official DistributorSKU
PHX2750578
MPN
IB ST 24 AO 4/SF4
Weight
0.66 kg
Series IB-ST
IB ST 24 AO 4/SF4 - I/O module
INTERBUS-ST analog output module, D/A resolution 13-bit, 4 outputs, 4 to 20 mA, 0 to 10 V, consisting of: Terminal part with screw connection and module electronics
- Temperature measurement modules
- Standard signal types (voltage and current)
Technical Specifications
Dimensions
| Width | 118 mm |
| Height | 117 mm |
| Length | 116 mm |
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
ST local bus
| Connection Method | ST local bus connector |
| Transmission Speed | 500 kbps |
Product properties
| Product family | Smart Terminal ST |
| Type | modular |
| Type | INTERBUS Smart Terminal |
| No. of channels | 4 |
Electrical properties
| Maximum power dissipation for nominal condition | 2.4 W |
| Test section | Bus/Outputs 500 V AC 50 Hz 1 min. |
| Test section | Supply voltage/Outputs 500 V AC 50 Hz 1 min. |
| Test section | Supply voltage/Ground conductor 500 V AC 50 Hz 1 min. |
| Test section | I/O voltage/Ground conductor 500 V AC 50 Hz 1 min. |
Supply
| Communications power UL | 9 V DC (from the ST local bus) |
| I/O voltage | 24 V DC (Us) |
| I/O voltage range | 18.5 V DC ... 30.2 V DC (Us) |
| Residual ripple | ± 1.2 V |
| Max. current consumption | 130 mA (from the ST local bus) |
| Typical current consumption | 100 mA (from the ST local bus) |
Connection technology
| Connection name | Terminal block |
Conductor connection
| Connection Method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 8 mm |
Terminal block
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 8 mm |
Ambient conditions
| Degree of Protection | IP20 |
Mounting
| Mounting Type | DIN rail mounting |
