FLM TEMP 4 RTD M12

Weight

0.333 kg

This product is Not Cancellable/Not Returnable

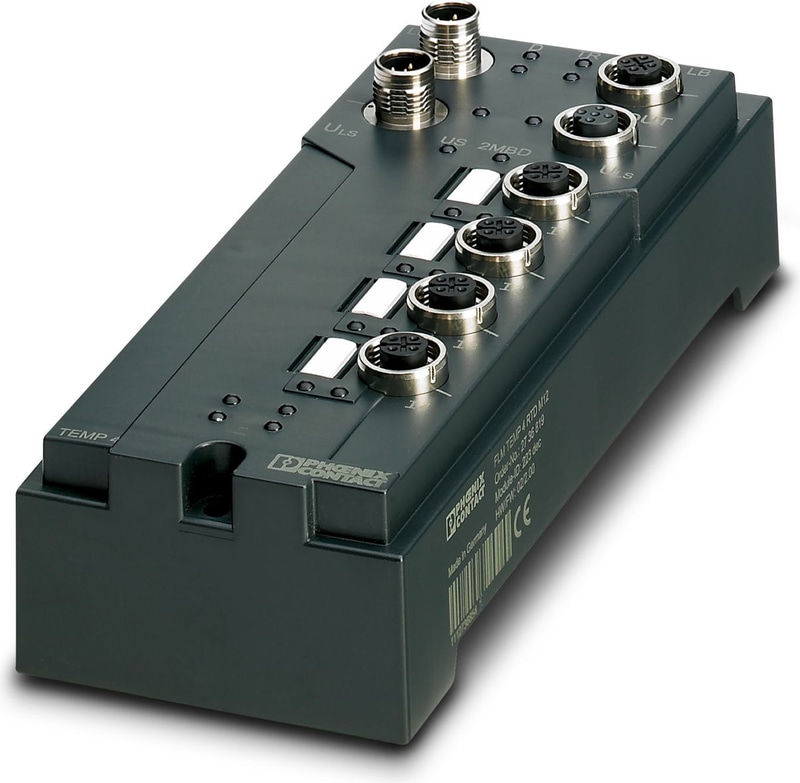

FLM TEMP 4 RTD M12 - Distributed I/O device

The local bus device has 4 inputs for resistive temperature sensors. Functions: 180 µs A/D conversion time, measured value output in 16-bit values, 500 kbaud/2 Mbaud selection, PCP configuration, short-circuit/overload protection, M12 fast connection technology.

Flexible power supply concept
SPEEDCON fast locking system
Diagnostic and status indicators
Short-circuit and overload protection
Consistent connection via M12 connectors

Dimensions

Width	70 mm
Height	178 mm
Depth	50 mm
Drill hole spacing	168 mm

Material specifications

Color

anthracite

Connection Method	M12 connector, B-coded
Transmission Speed	500 kbps / 2 Mbps
Transmission physics	Copper

Module

ID code (dec.)	223
ID code (hex)	DF
Length code (hex)	05
Length code (dec)	05
Process data channel	80 bit
Input address area	10 Byte
Output address area	10 Byte
Register length	96 bit
Required parameter data	17 Byte
Required configuration data	5 Byte

Analog:

Number of Inputs	max. 4 (for resistance temperature detectors)
Connection Method	M12 connector
Connection technology	2-, 3-, 4-conductor (shielded)

Analog

Number of Inputs	max. 4 (for resistance temperature detectors)
Connection Method	M12 connector
Connection technology	2-, 3-, 4-conductor (shielded)
Sensor types (RTD) that can be used	Pt, Ni, KTY sensors, linear resistors
Input filter time	4.1 ms (default setting or 0.6 ms; adjustable for each channel)
Process data update	Dependent on the connection method

Product properties

Type

modular

Potentials

Voltage supply U_L	24 V DC
Power supply at U_L	max. 4 A
Current consumption from U_L	max. 100 mA (At 2 Mbaud)
Current consumption from U_L	typ. 70 mA
Voltage supply U_S	24 V DC
Power supply at U_S	max. 4 A
Current consumption from U_S	typ. 5 mA (plus power supply for sensors)
Current consumption from U_S	max. 400 mA

Supply: Module electronics

Supply Voltage	24 V DC
Supply Voltage Range	18 V DC ... 30 V DC (including ripple)

Connection data

Connection Method

M12 connector

Ambient conditions

Ambient Temperature (Operation)	-25 °C ... 60 °C
Degree of Protection	IP65/IP67
Air pressure (operation)	80 kPa ... 106 kPa (up to 2000 m above sea level)
Air pressure (storage/transport)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)	-25 °C ... 85 °C
Permissible humidity (storage/transport)	95 %

Standards and Regulations

Protection class

III (IEC 61140, EN 61140, VDE 0140-1)

Mounting

Mounting Type

Wall mounting
