2722085
Official DistributorSKU
PHX2722085
MPN
IBS ISA FC/486DX/I-T
Weight
0.473 kg

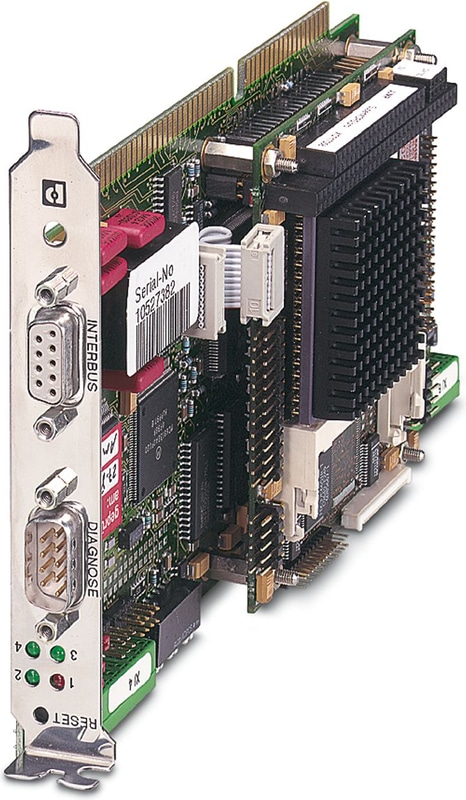

IBS ISA FC/486DX/I-T - Termination board
Field controller, with electrical isolation including operating system and Generation 4 PC/104 coprocessor card (486 DX) for IEC 61131 runtime system for PC WorX
Technical Specifications
Product properties
| Type | PC card |
| Format | 1 deep slot, (229 x 99.1 x 35) mm, double slot width |
System properties
| Control system | IBM-compatible PC with ISA slot, from 386DX processor |
| Retentive data storage | 2 kByte (NVRAM) |
Addressable areas
| I/O | 8 bytes, selectable between 100 and 3F8 (hex) |
IEC 61131 runtime system
| Program Memory | typ. 1 Mbyte (86 K instruction) |
| Data storage system | 2.4999561309814 Mbyte |
| Number of control tasks | 16 |
INTERBUS-Master
| Number of supported devices | max. 512 (of which 254 are remote bus devices/bus segments) |
| Number of devices with parameter channel | max. 126 (512 words) |
Local diagnostics
| Designation | READY/RUN, FAIL |
| Monitored function | INTERBUS operating status |
| Optical representation | 2 LEDs |
Functionality
| Control system | IBM-compatible PC with ISA slot, from 386DX processor |
System requirements
| Engineering tool | PC Worx |
Electrical properties
| Local diagnostics | READY/RUN, FAIL INTERBUS operating status 2 LEDs |
| Local diagnostics | READY/RUN, FAIL Coprocessor operating status Status display via LED |
| Local diagnostics | UL Voltage supply operating status Status display via LED |
| Transmission medium | Copper |
| Maximum power dissipation for nominal condition | max. 12.5 W |
Supply
| Supply Voltage | 5 V DC |
| Supply Voltage Range | 4.75 V DC ... 5.25 V DC (including ripple) |
| Power supply connection | Via ISA bus or ext. (MINI-COMBICON) |
| Typical current consumption | 2.5 A (please observe increased inrush current) |
Digital:
| Number of Inputs | 2 |
| Connection Method | On-board |
Connection data
| Connection Method | Via ISA bus or MINI-COMBICON |
Interfaces
| Interrupts | Selectable between IRQ 2, 3, 5, 7, 10, 12, 15 |
INTERBUS remote bus
| Connection Method | 9-pos. D-SUB female connector (optionally optical fiber possible via interface converters) with electrical isolation |
Parameterization/operation/diagnostics
| Connection Method | RS-232-C, D-SUB 9-pos. male connector |
Host system
| Connection Method | IBM-compatible PCs with ISA slot, from 386 DX processor |
Dimensions
| Width | 229 mm |
| Height | 107 mm |
| Depth | 35 mm |
External dimensions
| Width / Height / Depth | 229 mm / 107 mm / 35 mm (1 long slot, (229 x 99.1 x 35 mm), width: 2 slots) |
Ambient conditions
| Degree of Protection | IP20 |
Mounting
| Mounting Type | In the host system |
