IBS ISA FC/I-T
Weight
0.19 kg

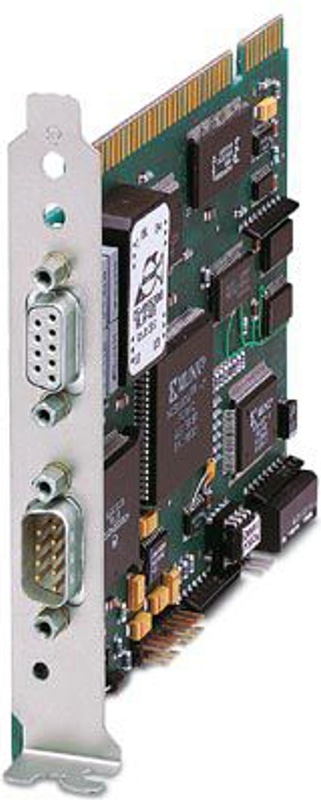

IBS ISA FC/I-T - Termination board
Field controller, with electrical isolation including operating system
Technical Specifications
Product properties
| Type | PC card |
| Format | 1 short slot, 135 x 107 mm |
System properties
| Retentive data storage | NVRAM |
| Operating system | Windows NT |
Addressable areas
| I/O | 8 bytes, selectable between 100 and 3F8 (hex) |
IEC 61131 runtime system
| Program Memory | typ. 384 kByte (32 K instructions (IL)) |
| Number of control tasks | 8 |
INTERBUS-Master
| Number of devices with parameter channel | max. 62 |
Local diagnostics
| Designation | MREADY |
| Monitored function | INTERBUS |
| Optical representation | Status display via LED |
System requirements
| Engineering tool | PC Worx |
| Driver | Windows NT |
Electrical properties
| Local diagnostics | MREADY INTERBUS Status display via LED |
| Transmission medium | Copper |
| Maximum power dissipation for nominal condition | max. 2.5 W |
Supply
| Supply Voltage | 5 V DC |
| Supply Voltage Range | 4.75 V DC ... 5.25 V DC (including ripple) |
| Power supply connection | Via ISA bus |
| Typical current consumption | 0.5 A (please observe increased inrush current) |
Digital:
| Number of Inputs | 2 |
| Connection Method | On-board |
Connection data
| Connection Method | Via ISA bus |
Interfaces
| Interrupts | Selectable between IRQ 3, 5, 7, 9 (2), 10, 11, 12, 15 |
INTERBUS remote bus
| Connection Method | 9-pos. D-SUB female connector (optionally optical fiber possible via interface converters) with electrical isolation |
Parameterization/operation/diagnostics
| Connection Method | RS-232-C, D-SUB 9-pos. male connector |
Host system
| Connection Method | IBM-compatible PCs with ISA slot, from 386 DX processor |
Dimensions
| Width | 135 mm |
| Height | 107 mm |
| Depth | 18 mm |
External dimensions
| Width / Height / Depth | 135 mm / 107 mm / 18 mm (1 short slot, 135 mm x 107 mm) |
Mounting
| Mounting Type | In the host system |
