Phoenix Contact 2700925

2700925

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX2700925
MPN
TP 3121T SER
This product is Not Cancellable/Not Returnable
Series TP

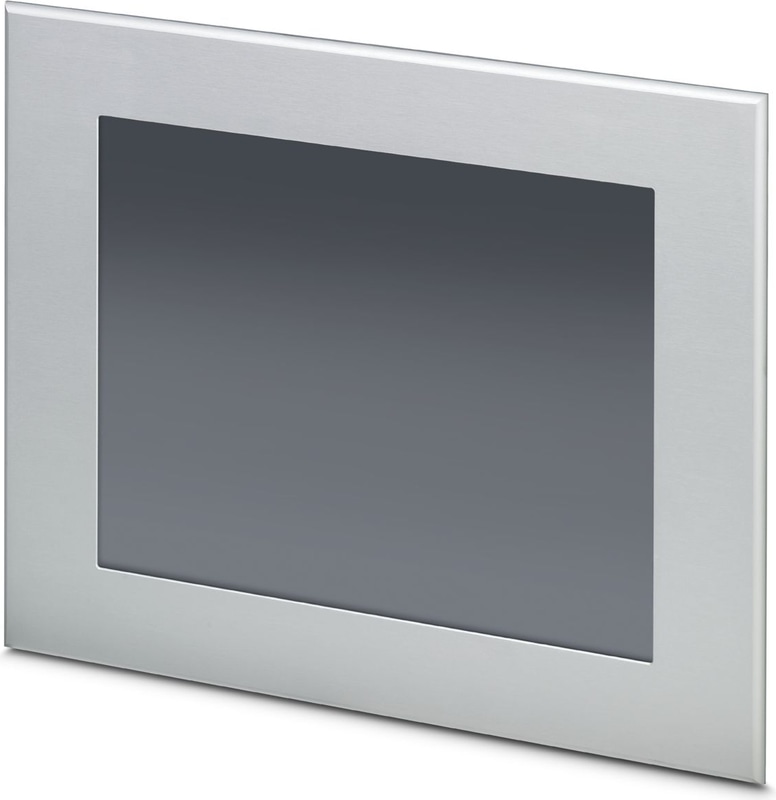

TP 3121T SER - Touch panel

Touch panel with 30.7 cm/12.1" TFT display (analog resistive (polyester)), 800 x 600 pixel(s) (SVGA), 262144 colors, Xscale® PXA320, 806 MHz, 1x COM (RS-232), 2x USB host 1.1, 1x CompactFlash®, 1 x Ethernet (10/100 Mbps), RJ45, Windows® CE 6.0 and user software: Visu+ / AX OPC Server. (bus system: without)

  • Display available in sizes from 14.5 cm (5.7") to 30.7 cm (12.1")
  • Visu+ RT and AX OPC server integrated as standard in all devices
  • Energy efficient due to LED backlighting
  • Can be extended with external CF card
  • Short startup time
  • Easy installation, low installation depth, and compact design
Technical Specifications

Utilization restriction

EMC noteEMC: class A product, see manufacturer's declaration in the download area

Computer data

ProcessorXscale® PXA320, 806 MHz
Operating systemWindows® CE 6.0
RAM128 MB SDRAM
Data storage systemFlash, 1 GB

Display

Display type30.7 cm/12.1" TFT
Screen resolution800 x 600 Pixel(s) (SVGA)
Touch technologyanalog resistive (polyester)
Display lighting typeLED
Brightness360 cd/m² typical (adjustable)
MTBF50000 h
Color spectrum262144 colors

Interfaces

Interfaces1x COM (RS-232)
Interfaces2x USB host 1.1
Interfaces1x CompactFlash®
Optional interfaces1x CF card, type I and II
Network1 x Ethernet (10/100 Mbps), RJ45
Bus systemwithout

System properties

User softwareVisu+
User softwareAX OPC Server

System requirements

Runtime systemVisu+ Runtime

Supply

Power Supply Unit24 V DC ±20 %
Power consumption16.8 VA

Mounting

Mounting TypeFront mounting

Material specifications

Material front plateAluminum (natural anodized)
Housing MaterialSteel sheet, zinc-plated

Ambient conditions

Degree of ProtectionIP65 (front), IP20 (back)
Degree of ProtectionNEMA 4X
Ambient Temperature (Operation)0 °C ... 50 °C
Ambient temperature (storage/transport)-25 °C ... 70 °C
Permissible humidity (operation)20 % ... 85 % (non-condensing)
Permissible humidity (storage/transport)20 % ... 85 % (non-condensing)
ShockDIN EN 60068-2-27
Vibration (Operation)DIN EN 60068-2-6

Dimensions

Width340 mm
Height270 mm
Depth65 mm

External dimensions

Width / Height / Depth340 mm / 270 mm / 5 mm (Dimensions of the front plate)

Installation dimensions

Width / Height / Installation depth315 mm / 243.5 mm / 60 mm (65 mm, approximately with fieldbus interface)
