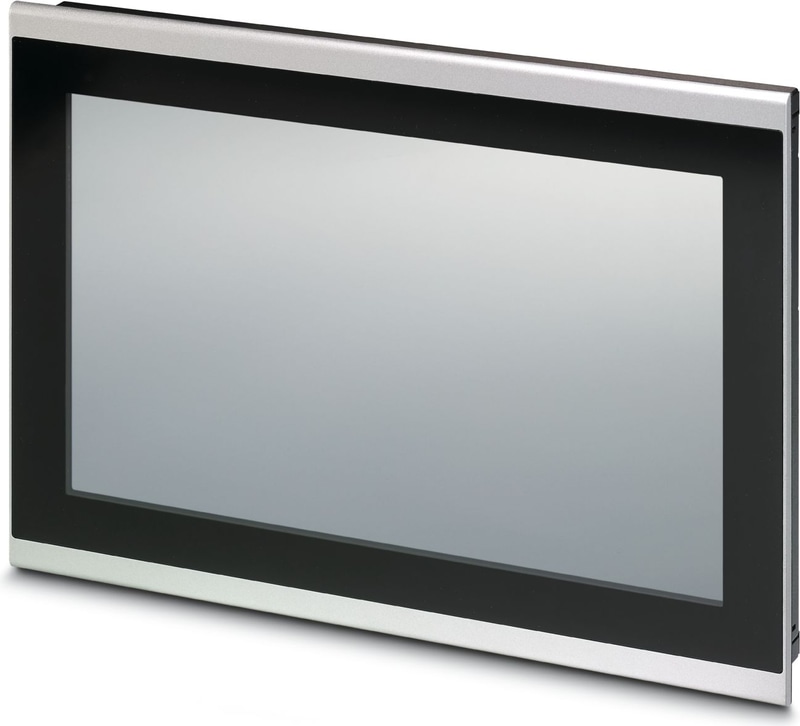

TP 3120W/P - Touch panel

Touch panel with 30.7 cm/12.1" TFT display (projective-capacitive (PCAP)), 1280 x 800 pixel(s) (WXGA), 65536 colors, Arm® Cortex®-A8, 1000 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows® Embedded Compact 7 and user software: Visu+. (bus system: without)

  • Mobile system access with the Visu+ mobile app
  • Robust and sturdy, thanks to glass front suitable for industrial use
  • Fast response and display refresh, thanks to powerful processor
  • Flexible connection to third-party systems by means of various drivers
  • Integrated Visu+ visualization software
Technical Specifications

Computer data

ProcessorArm® Cortex®-A8, 1000 MHz
Operating systemWindows® Embedded Compact 7
RAM512 MB LPDDR RAM
Data storage systemNAND-Flash, 1 GB
Slots1x SD

Display

Display type30.7 cm/12.1" TFT
Screen resolution1280 x 800 Pixel(s) (WXGA)
Touch technologyprojective-capacitive (PCAP)
Display lighting typeLED
Brightness320 cd/m² typical (adjustable)
MTBF50000 h
Color spectrum65536 colors
Reading angle left88.00 °
Reading angle right88.00 °
Reading angle top88.00 °
Reading angle bottom88.00 °

Interfaces

Interfaces2x USB Host 2.0
Network1 x Ethernet (10/100 Mbps), RJ45
Bus systemwithout

System properties

User softwareVisu+

System requirements

Runtime systemVisu+ Runtime

Electrical properties

Service life of battery5 years (typical)

Supply

Supply Voltage24 V DC
Supply Voltage Range18 V DC ... 30 V DC
Power Supply Unit24 V DC ±20 %
Typical current consumption0.9 A

Real-time clock

Realtime ClockYes (battery-backed)

Supply

Power consumptiontyp. 21.6 W

Mounting

Mounting TypeFront mounting

Material specifications

Material front plateAluminum (natural anodized)
Housing MaterialSteel sheet, zinc-plated
Housing MaterialSteel sheet, zinc-plated

Ambient conditions

Degree of ProtectionIP65 (front), IP20 (back)
Degree of ProtectionNEMA 4X
Ambient Temperature (Operation)0 °C ... 50 °C
Ambient temperature (storage/transport)-25 °C ... 70 °C
Permissible humidity (operation)20 % ... 85 % (non-condensing)
Permissible humidity (storage/transport)20 % ... 85 % (non-condensing)
ShockDIN EN 60068-2-27
Vibration (Operation)DIN EN 60068-2-6

External dimensions

Width / Height / Depth336 mm / 234 mm / 6 mm (Dimensions of the front plate)

Installation dimensions

Width / Height / Installation depth326 mm / 224 mm / 53 mm (Installation cutout)
Accessories
  • Phoenix Contact2402809
    2402809
    USB memory stick - USB FLASH DRIVE
  • Phoenix Contact2988162
    2988162
    SD FLASH 2GB - Program and configuration memory, for extending the internal flash memory, pluggable, 2 GB.
  • Phoenix Contact2701383
    2701383
    HMI BATTERY - Lithium battery
  • Phoenix Contact2701387
    2701387
    Mounting material - HMI SCB MOUNTING KIT 8
  • Phoenix Contact2701380
    2701380
    Mounting material - HMI WALL MOUNTING KIT
