2700155
Official DistributorSKU
PHX2700155
MPN
PSD-S ME OB/MB
Weight
0.319 kg
This product is Not Cancellable/Not Returnable

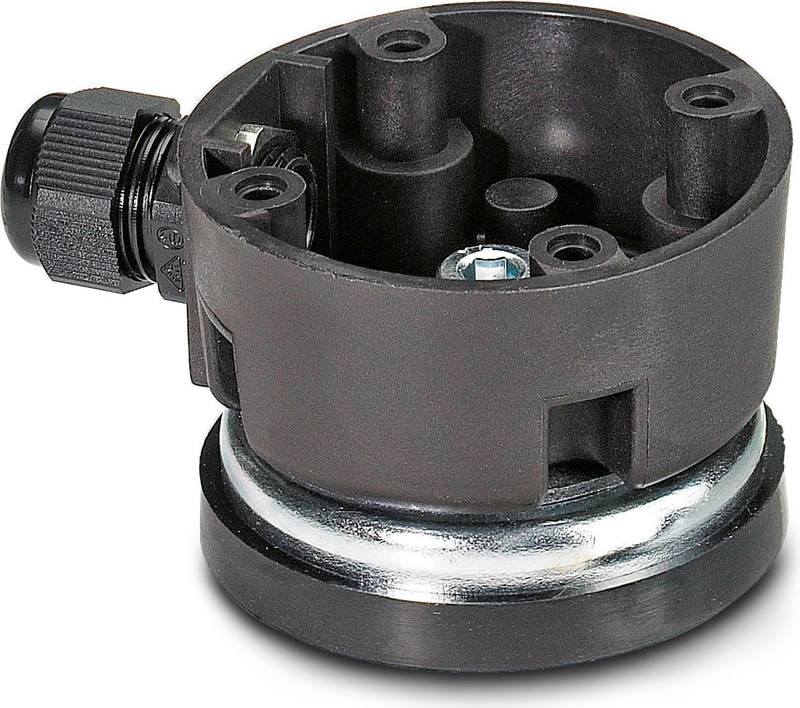

PSD-S ME OB/MB - Mounting material
Outlet box with magnetic base for base mounting, black
- Magnetic base for tool-free mounting on metal surfaces
- With concealed cable routing
Documents
Technical Specifications
Note on application
| Note on application | Only for industrial use |
Product properties
| Scope of delivery | 2 x plastic screw1 x cable threaded joint1 x nut1 x seal |
| Scope of delivery | 2 x plastic screw1 x cable threaded joint1 x nut1 x seal |
Connection data
| Connection Method | Screw connection |
Dimensions
| Height | 45.5 mm |
| Diameter | 70 mm |
Material specifications
| Color | black |
| Material | PA-GF |
Ambient conditions
| Ambient Temperature (Operation) | -30 °C ... 60 °C |
Mounting
| Mounting Type | Base mounting |
| Mounting Type | Tube mounting |
| Assembly note | Magnetic holder |
| Mounting Position | any |
