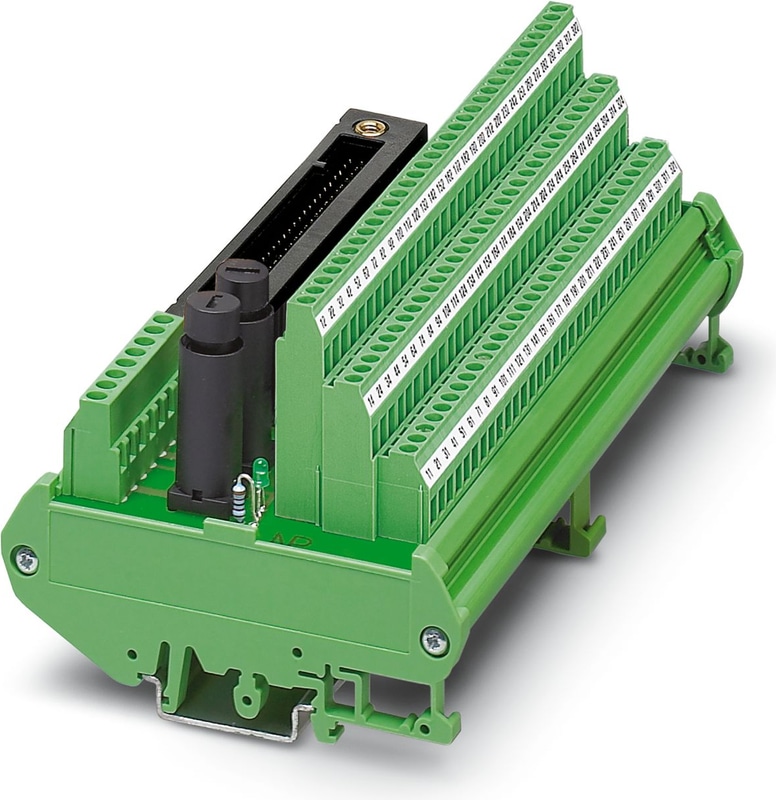

FLKMS-KS50/32IM/YCS - Passive module

32-channel module with a three-conductor screw connection and redundant power supply. Suitable for Yokogawa cards ADV151 and ADV551.

  • For ADV 151 and ADV 551 digital modules
  • Three-wire connection (signal, positive, negative)
  • Redundant voltage supply (IEC 127-2, 5 x 20, 2 A fuse)
Technical Specifications

Product properties

No. of channels32

Insulation characteristics

InsulationFunctional insulation

Insulation characteristics: Air clearances and creepage distances

InsulationFunctional insulation
Overvoltage categoryII
Pollution degree2

Electrical properties

Operating voltage range19.2 V DC ... 30 V DC
Fuse2 A 5x20 (fast-blow) (F01, F02)
Current (per branch)≤ 1 A
Current (Voltage supply P1+, P2+)≤ 2 A

Air clearances and creepage distances

Rated Insulation Voltage50 V
Rated surge voltage0.5 kV (1.2/50 μs)

Supported controller YOKOGAWA CS3000 CentumVP

Suitable I/O cardADV151
Suitable I/O cardADV161
Suitable I/O cardADV551
Suitable I/O cardADV561

Supported controller YOKOGAWA STARDOM

Suitable I/O cardNFDV151
Suitable I/O cardNFDV161
Suitable I/O cardNFDV551
Suitable I/O cardNFDV561

Connection 1 (control level)

Connection MethodYokogawa KS-compatible
Number of Connections1
Number of Positions50
NoteUsable system cables: Phoenix Contact YUC50, Yokogawa AKB331
Tightening torque0.5 Nm
Pitch2.54 mm

Connection 2 (field level)

Connection MethodScrew connection
Stripping length8 mm
Screw threadM3
Number of Positions96
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Pitch5.08 mm

Connection 3 (supply)

Connection MethodScrew connection
Stripping length8 mm
Screw threadM3
Number of Positions8
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Signaling

Status display presentYes
Operating voltage displayGreen LED

Item dimensions

Width174 mm
Height89.6 mm
Depth79.3 mm

Ambient conditions

Degree of protection (Module)IP00
Degree of protection (Installation location)≤ IP54
Ambient Temperature (Operation)-20 °C ... 70 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Altitude≤ 2000 m

UKCA

CertificateUKCA-compliant

Air clearances and creepage distances

Standards/regulationsEN IEC 60664-1

Mounting

Mounting TypeDIN rail mounting
Mounting Positionany

Notes

Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
