2295952
Official DistributorSKU
PHX2295952
MPN
FLKMS-D37 SUB/B/ZFK3DS/PE
Weight
0.196 kg
This product is Not Cancellable/Not Returnable
Series FLKMS-D

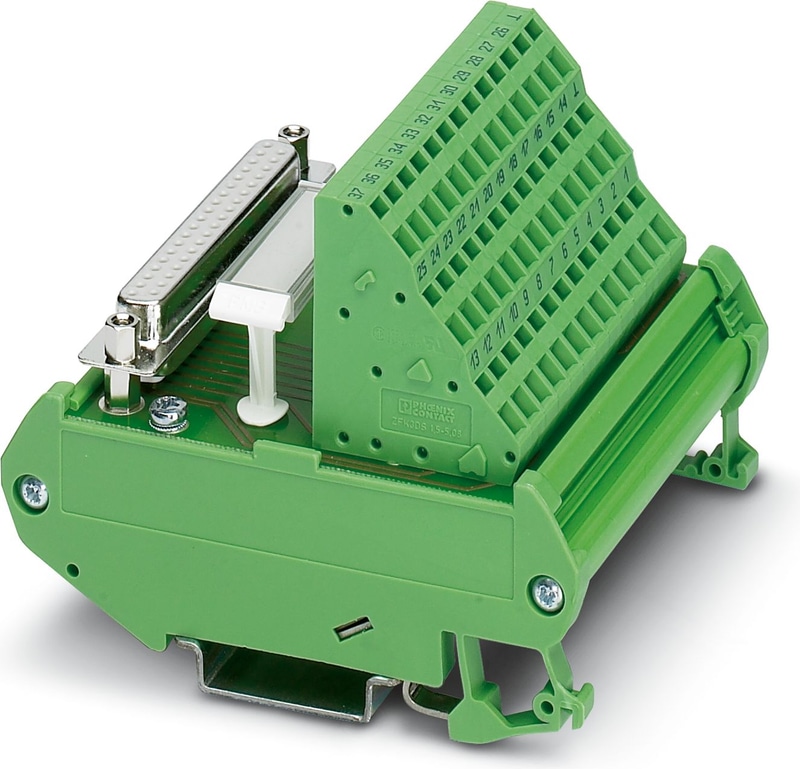

FLKMS-D37 SUB/B/ZFK3DS/PE - Interface module
VARIOFACE module, with spring-cage connection and D-Subminiature socket strip, for mounting on NS 35/7.5 or NS 32, 37-pos.
Technical Specifications
Product properties
| Number of Positions | 37 |
Insulation characteristics
| Insulation | Functional insulation |
Insulation characteristics: Air clearances and creepage distances
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Operating voltage (AC) | ≤ 30 V AC |
| Operating voltage (DC) | ≤ 60 V DC |
| Current (per branch) | ≤ 2.5 A |
Air clearances and creepage distances
| Rated Insulation Voltage | 125 V |
| Rated surge voltage | 1.2 kV (1.2/50 μs) |
Connection 1 (control level)
| Connection in acc. with standard | IEC 60807-2 |
| Connection Method | D-SUB socket strip |
| Screw thread | UNC 4-40 |
| Number of Connections | 1 |
| Number of Positions | 37 |
| Insertion/withdrawal cycles | > 500 |
| Pitch | 2.77 mm |
Connection 2 (field level)
| Connection Method | Spring-cage connection |
| Stripping length | 7.5 mm |
| Number of Positions | 39 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.25 mm² ... 1.5 mm² (Ferrules without plastic sleeve) |
| Conductor cross section flexible (2 conductors with same cross section) | 0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve) |
| Conductor cross section AWG | 24 ... 14 |
| Pitch | 5.08 mm |
Signaling
| Status display present | No |
Item dimensions
| Width | 75 mm |
| Height | 90 mm |
| Depth | 70 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing insulation material | PVC |
Ambient conditions
| Degree of protection (Module) | IP00 |
| Degree of protection (Installation location) | ≥ IP54 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m |
Air clearances and creepage distances
| Standards/regulations | EN IEC 60664-1 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Why Proax for Phoenix Contact 2295952?
Proax is an authorized distributor of Phoenix Contact 2295952 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
