Official DistributorSKU
MPN
PSI-DATA/BASIC-MODEM/RS232
Weight
0.228 kg

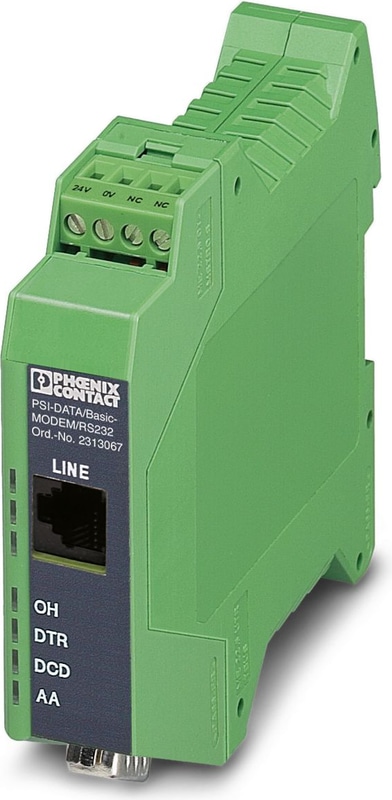

PSI-DATA/BASIC-MODEM/RS232 - Modem
Industrial analog modem for assembly on EN DIN rails. Worldwide access to industrial PCs, machines and systems. Serial RS-232 interface, 3-way electrical isolation, supply voltage 24 V DC.
- Configurable, selective call acceptance
- High-quality electrical isolation
- Connection establishment with password protection
- Integrated surge protection to ensure high system availability
- Callback function
Technical Specifications
Utilization restriction
| CCCex note | Use in potentially explosive areas is not permitted in China. |
Product properties
| MTTF | 628 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| MTTF | 290 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) |
| MTTF | 115 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) |
Electrical properties
| Electrical isolation | VCC // PSTN // V.24 (RS-232) |
| Maximum power dissipation for nominal condition | 2.4 W |
| Mains type | Fixed-line network |
| Test voltage data interface/power supply | 1.5 kVrms (50 Hz, 1 min.) |
| Test voltage data interfaces | 1500 V |
Supply
| Supply Voltage Range | 10 V DC ... 30 V DC (via pluggable COMBICON screw terminal block) |
| Nominal Supply Voltage | 24 V DC ±5 % (as an alternative or redundant, via backplane bus contact and system current supply) |
| Typical current consumption | < 100 mA (24 V DC) |
| Typical current consumption | < 40 mA |
| Tightening torque | 0.56 Nm ... 0.79 Nm |
Interfaces
| Signal | RS-232 |
Data: V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
| Serial transmission speed | 0.3; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2 kbps |
| Connection Method | D-SUB 9 plug |
| Transmission length | 15 m |
| File format/coding | Serial asynchronous UART/NRZ, 7/8 data, 1/2 stop, 1 parity, 10/11-bit character length |
| Data flow control/protocols | Software handshake, Xon/Xoff or hardware handshake RTS/CTS |
Data: PSTN-Port (a/b-Line)
| Connection Method | RJ12, 6-pos. |
| Dialing procedure | Multiple frequency/pulse dialing, configuration via software |
Dimensions
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 114.5 mm |
Material specifications
| Material (Housing) | PA V0 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 55 °C |
Corrosive gas test
| Identification | ISA-S71.04-1985 G3 Harsh Group A |
EMC data
| Noise immunity | EN 61000-6-2:2005 |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 55032 |
Mounting
| Mounting Type | DIN rail mounting |
Accessories
ME 22,5 TBUS 1,5/ 5-ST-3,81 GN - DIN rail connector, color: green, nominal current: 8 A (parallel contacts), rated voltage (III/2): 125 V, number of positions: 5, product range: TBUS5-22,5.., pitch: 3.81 mm, mounting: DIN rail mounting, locking: without, mounting: without, type of packaging: packed in cardboard, Item with gold-plated contacts, bus connectors for connecting with electronics housings, 5 parallel contacts
PSM-KA9SUB9/BB/2METER - RS-232 cable, 9-pos. D-SUB socket on 9-pos. D-SUB socket, 9-wire, 1:1
