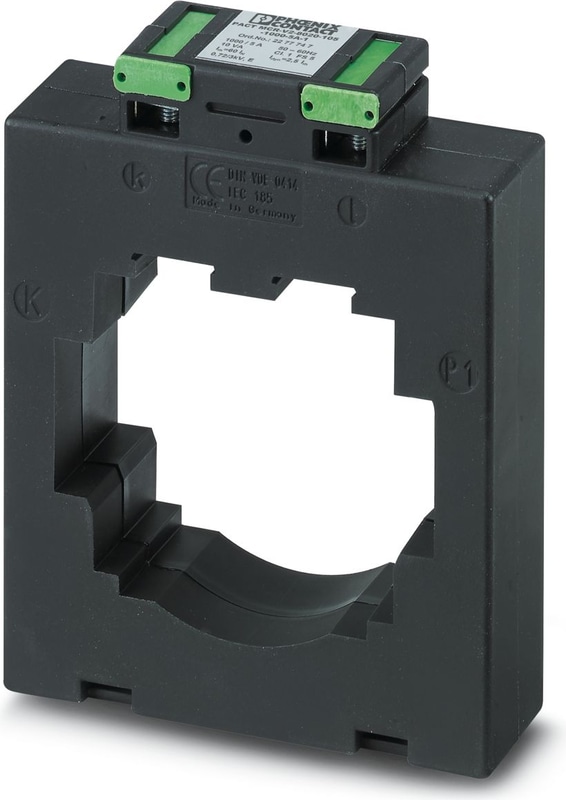

PACT MCR-V2-8020-105-1000-5A-1 - Current transformer

Window-type current transformer, 1000 A AC primary current; 5 A AC secondary current; accuracy class 1; 10 VA rated power

Primary rated current Ipn: 0 ... (500 ... 2000) A
Circular conductor dimensions: Ø 70 mm

Electrical properties

Rated Insulation Voltage

1 kV (Phase/neutral conductor)

General

Can be calibrated	no
Converter type	Window-type current transformer

Current transformers

Rated power	10 VA
Thermal rated short-time current	Ith = 60 * In
Thermal rated continuous current	Id = 1.2 * In
Rated surge current	Idyn = 2.5 * Ith
Rated frequency f_n	50 Hz
Rated frequency f_n	60 Hz
Primary rated current I_pn	0 A ... 1000 A
Primary rated current range	1 A ... 4000 A (depends on type)
Can be calibrated	no
Converter type	Window-type current transformer

Signal

Secondary rated current I_sn	5 A AC
Surge current limitation factor	FS 5
Accuracy class	1

Connection data

Connection Method	Screw connection
Conductor cross section flexible	2x 2.5 mm² ... 4 mm² (Secondary terminals)

Item dimensions

Width	30 mm
Height	132 mm
Depth	105 mm

Item dimensions with alternative mounting

Width	105 mm
Height	132 mm
Depth	30 mm

Copper rail

Width	80 mm
Height	10 mm

Copper rail 2

Width	60 mm
Height	60 mm

Circular conductor

Diameter

70 mm

Material specifications

Color	black (RAL 9005)
Housing Material	PA 6.6

Ambient conditions

Ambient Temperature (Operation)	-25 °C ... 40 °C
Ambient temperature (storage/transport)	-25 °C ... 40 °C
Permissible humidity (operation)	Use only indoors, non-condensing

Standards and Regulations

Standards/regulations	EN 50178
Standards/regulations	EN 61869

Mounting

Mounting Type

DIN rail mounting
