2276230
Official DistributorSKU
PHX2276230
MPN
PACT MCR-V2-6040- 96-1600-5A-1
Weight
0.409 kg
This product is Not Cancellable/Not Returnable
Series PACT-MCR-V

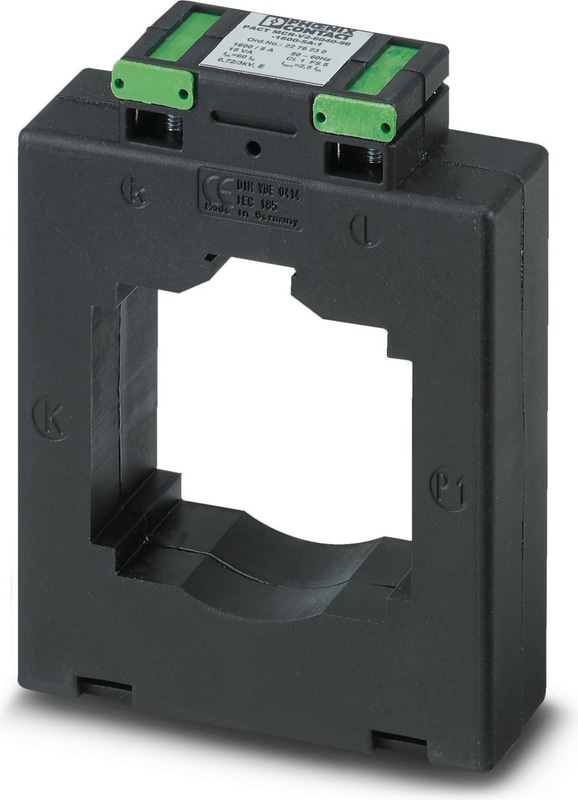

PACT MCR-V2-6040- 96-1600-5A-1 - Current transformer
Window-type current transformer, 1,600 A AC primary current; 5 A AC secondary current; accuracy class 1; 15 VA rated power
- Primary rated current Ipn: 0 ... (200 ... 2000) A
- Rail dimensions: 60 x 40 mm; 50 x 50 mm
Technical Specifications
Electrical properties
| Rated Insulation Voltage | 1 kV (Phase/neutral conductor) |
General
| Can be calibrated | no |
| Converter type | Window-type current transformer |
Current transformers
| Rated power | 15 VA |
| Thermal rated short-time current | Ith = 60 * In |
| Thermal rated continuous current | Id = 1.2 * In |
| Rated surge current | Idyn = 2.5 * Ith |
| Rated frequency fn | 50 Hz |
| Rated frequency fn | 60 Hz |
| Primary rated current Ipn | 0 A ... 1600 A |
| Primary rated current range | 1 A ... 4000 A (depends on type) |
| Can be calibrated | no |
| Converter type | Window-type current transformer |
Signal
| Secondary rated current Isn | 5 A AC |
| Surge current limitation factor | FS 5 |
| Accuracy class | 1 |
Connection data
| Connection Method | Screw connection |
| Conductor cross section flexible | 2x 2.5 mm² ... 4 mm² (Secondary terminals) |
Item dimensions
| Width | 30 mm |
| Height | 121 mm |
| Depth | 96 mm |
Item dimensions with alternative mounting
| Width | 96 mm |
| Height | 121 mm |
| Depth | 30 mm |
Copper rail
| Width | 60 mm |
| Height | 40 mm |
Copper rail 2
| Width | 50 mm |
| Height | 50 mm |
Circular conductor
| Diameter | 61 mm |
Material specifications
| Housing Material | PA 6.6 |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 40 °C |
| Ambient temperature (storage/transport) | -25 °C ... 40 °C |
| Permissible humidity (operation) | Use only indoors, non-condensing |
Standards and Regulations
| Standards/regulations | EN 50178 |
| Standards/regulations | EN 61869 |
Mounting
| Mounting Type | DIN rail mounting |
Accessories
PACT-FAST-MNT-W16-L65 - The transformer quick-action mechanism enables the lightning-fast mounting of PACT current transformers on the power rail. The installation can be completed easily by hand without the use of tools. Fixing pins: 65 mm, holding latches: 16 mm
