2263023
Official DistributorSKU
PHX2263023
MPN
SKBI 64/B64
Weight
0.352 kg
Series SKBI

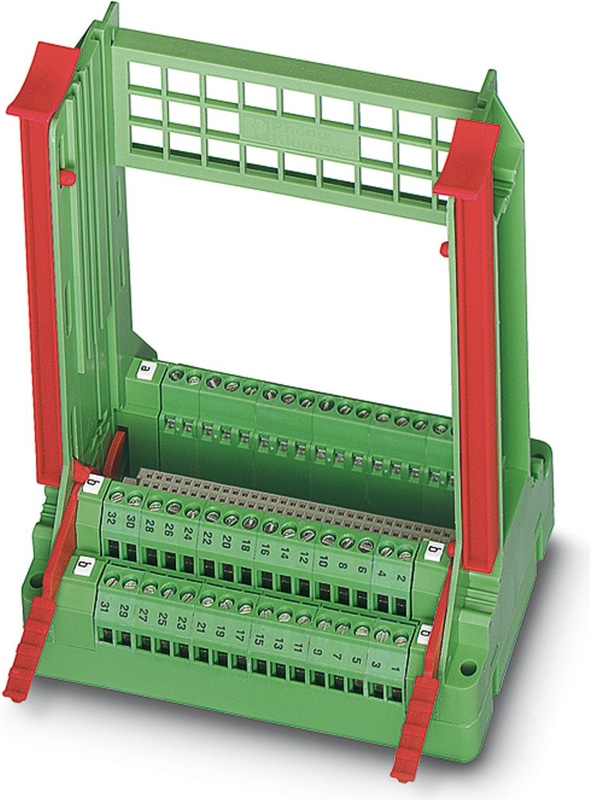

SKBI 64/B64 - Plug-in card block
19" plug-in card block, color: green, number of positions: 64, product range: SKBI 64, pitch: 2.54 mm, type of packaging: packed in cardboard
Technical Specifications
Product properties
| Product family | SKBI 64 |
| Type | IEC 60603-2/DIN 41612 - B |
| Number of Positions | 64 |
| Pitch | 2.54 mm |
Connection data
| Connection Method | Screw connection with tension sleeve |
| Stripping length | 8 mm |
| Screw thread | M3 |
Dimensions
| Width | 118 mm |
| Height | 162 mm |
| Length | 66 mm |
| Hole diameter | 4.2 mm |
| Pitch | 2.54 mm |
Material specifications
| Color | green |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
Packaging specifications
| Type of packaging | packed in cardboard |
Accessories
Snap foot, for horizontal or vertical mounting of the SKBI plug-in card blocks, on the NS 35/7.5 DIN rail
