HC-ALU 6-78 DKL-COVER GY
Weight
0.123 kg
Series HC-ALU

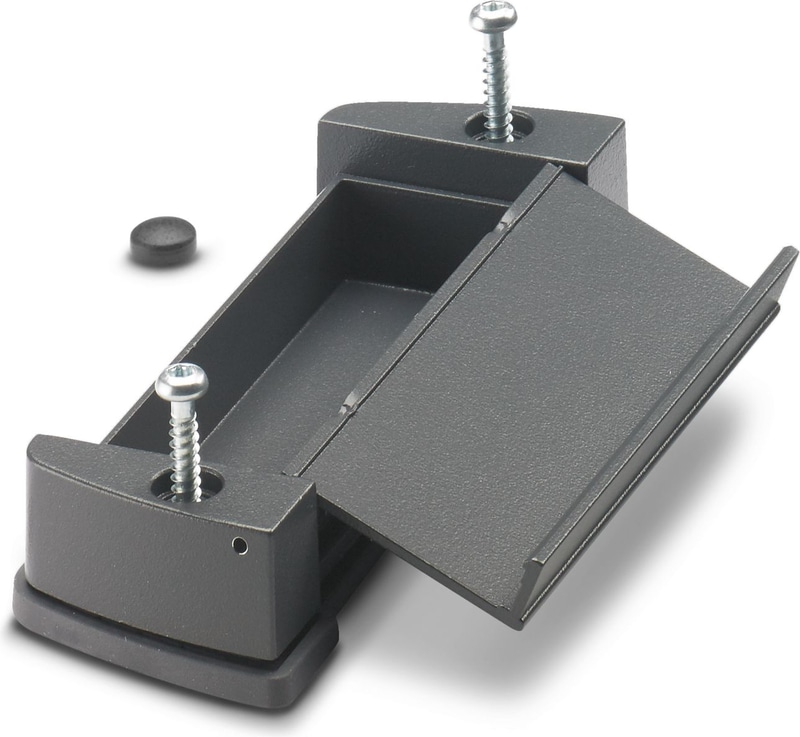

HC-ALU 6-78 DKL-COVER GY - End cover
Profile housing, End cover, with hinged flap, with screws and seal, for 53.5 mm profile width (internal), width: 101.9 mm, length: 15 mm, depth: 78 mm
- Aluminum extruded profile
- Available in lengths from 100 mm ... 1000 mm, can be cut to any length
- Available in overall widths from 53.5 mm ... 161 mm
- Up to IP65 degree of protection
- Can be used as handheld and wall housing
- Optional EMC seals available
Technical Specifications
Product properties
| Housing type | Profile housing |
| Housing series | HC-ALU |
| Product family | HC-ALU 6-78 |
| Type | End cover, with hinged flap, with screws and seal, for 53.5 mm profile width (internal) |
| Ventilation openings present | no |
Dimensions
| Width | 101.9 mm |
| Depth | 78 mm |
| Length | 15 mm |
Material specifications
| Surface characteristics | powder coated |
Ambient conditions
| Max. IP code to attain | IP65 |
Why Proax for Phoenix Contact 2201122?
Proax is an authorized distributor of Phoenix Contact 2201122 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
