2200905
Official DistributorSKU
PHX2200905
MPN
HC-ALU 6-161 PROFILE 1000
Weight
4.05 kg
This item is ineligible for free shipping due to its size/weight.
Series HC-ALU

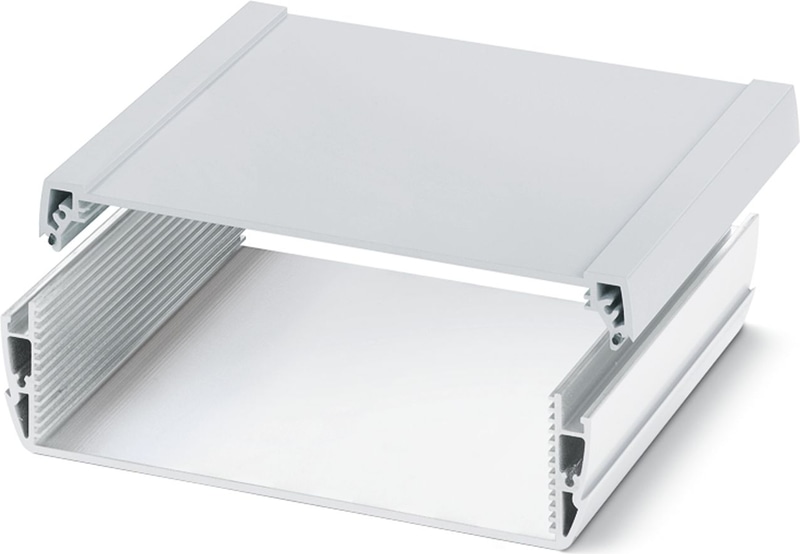

HC-ALU 6-161 PROFILE 1000 - Electronics housing
Profile housing, Wall mounting (with accessories as an option), Aluminum profile, 2-piece, profile width (internal): 161 mm, profile width (external): 187 mm, length: 1000 mm, height: 187 mm, depth: 54.6 mm
- Aluminum extruded profile
- Available in lengths from 100 mm ... 1000 mm, can be cut to any length
- Available in overall widths from 53.5 mm ... 161 mm
- Up to IP65 degree of protection
- Can be used as handheld and wall housing
- Optional EMC seals available
Technical Specifications
Product properties
| Housing type | Profile housing |
| Housing series | HC-ALU |
| Product family | HC-ALU 6-161 |
| Type | Aluminum profile, 2-piece |
| Ventilation openings present | no |
Dimensions
| Height | 187 mm |
| Depth | 54.6 mm |
| Length | 1000 mm |
External dimensions
| Profile width (external) | 187 mm |
Internal dimensions
| Profile width (internal) | 161 mm |
Material specifications
| Color (Housing) | graphite grey (RAL 7024) |
| Housing Material | Aluminum |
| Surface characteristics | powder coated |
Ambient conditions
| Max. IP code to attain | IP65 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
PCB data
| Number of PCB holders | 13 |
| Type of PCB mount | Slot |
Mounting
| Mounting Type | Wall mounting (with accessories as an option) |
Why Proax for Phoenix Contact 2200905?
Proax is an authorized distributor of Phoenix Contact 2200905 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
