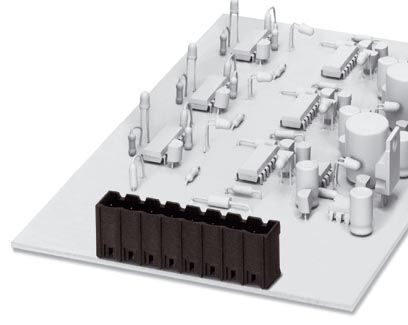

The figure shows an 8-position version
Official DistributorSKU
MPN
MSTBVA 2,5/ 4-G THT
Weight
0.003 kg
This product is Not Cancellable/Not Returnable
Series MSTBVA
MSTBVA 2,5/ 4-G THT - PCB connectors
PCB headers, color: black, contact surface: Tin, number of positions: 4, product range: MSTBVA 2,5/..-G-THT, pitch: 5 mm, pin layout: Linear pinning, solder pin [P]: 3.9 mm, type of packaging: packed in cardboard, For user information and design recommendations for through-hole reflow technology, go to: Downloads
Technical Specifications
Dimensions
| Length [ l ] | 8.6 mm |
| Width | 22 mm |
| Pitch | 5 mm |
| Dimension a | 15 mm |
| Width [ w ] | 22 mm |
| Height [ h ] | 15.9 mm |
| Constructional height | 12 mm |
| Length of the solder pin | 3.9 mm |
| Length | 8.6 mm |
General
| Range of articles | MSTBVA 2,5/..-G-THT |
| Insulating material group | IIIa |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Rated voltage (III/3) | 250 V |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 400 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 12 A (per position) |
| Maximum Load Current | 12 A |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Color | black |
| Number of Positions | 4 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
| Connection in acc. with standard | CUL |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
