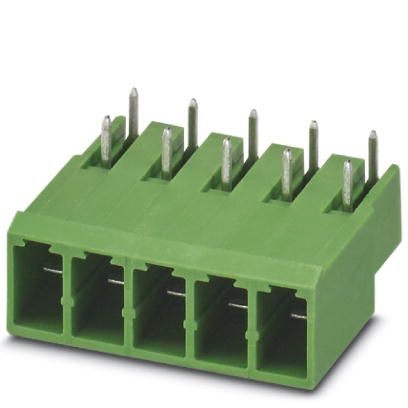

Printed-circuit board connector - PC 4/ 6-GU-7,62
PCB headers, nominal cross section: 4 mm², color: green, nominal current: 20 A, rated voltage (III/2): 630 V, contact surface: Tin, type of contact: Male connector, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: PC 4/..-GU, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 4.26 mm, number of solder pins per potential: 2, plug-in system: POWER COMBICON 4, Pin connector pattern alignment: reversed, Locking: without, mounting: without, type of packaging: packed in cardboard
- Well-known mounting principle allows worldwide use
- Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
- Easy PCB replacement thanks to plug-in modules
- Plug-in direction parallel to the PCB
Item properties
Brief article description | PCB header |
Connector system | POWER COMBICON 4 |
Type of contact | Male connector |
Range of articles | PC 4/..-GU |
Pitch | 7.62 mm |
Number of Positions | 6 |
Mounting Type | Wave soldering |
Pin layout | Linear pinning |
Locking | without |
Number of rows | 1 |
Number of Connections | 6 |
Number of potentials | 6 |
Pin connector pattern alignment | reversed |
Electrical parameters
Nominal Current | 20 A |
Nom. voltage | 630 V |
Rated voltage (III/3) | 400 V |
Rated voltage (III/2) | 630 V |
Rated voltage (II/2) | 630 V |
Rated surge voltage (III/3) | 6 kV |
Rated surge voltage (III/2) | 6 kV |
Rated surge voltage (II/2) | 6 kV |
Material data - contact
Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
Contact Material | Cu alloy |
Metal surface contact area (top layer) | Tin (5 - 7 µm Sn) |
Metal surface contact area (middle layer) | Nickel (2 - 5 µm Ni) |
Metal surface soldering area (top layer) | Tin (5 - 7 µm Sn) |
Metal surface soldering area (middle layer) | Nickel (2 - 5 µm Ni) |
Material data - housing
Housing color | green (6021) |
Insulating material | PA |
Insulating material group | I |
CTI according to IEC 60112 | 600 |
Flammability rating according to UL 94 | V0 |
Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Flange specifications
Type of locking | without |
Dimensions for the product
Caption | Schematische Abbildung - weitere Details siehe Produktfamilienzeichnung im Download Center |
Length [ l ] | 29 mm |
Width [ w ] | 45.72 mm |
Height [ h ] | 17.06 mm |
Pitch | 7.62 mm |
Height (without solder pin) | 12.8 mm |
Solder pin [P] | 4.26 mm |
Pin spacing | 7.62 mm |
Pin dimensions | 1 x 0.8 mm |
Dimensions for PCB design
Hole diameter | 1.3 mm |
Pin spacing | 7.62 mm |
Packaging information
Type of packaging | packed in cardboard |
Pieces per package | 50 |
Denomination packing units | Pcs. |
General product information
Type of note | Notes on operation |
Note | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
Ambient conditions
Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Relative humidity (storage/transport) | 30 % ... 70 % |
Ambient temperature (assembly) | -5 °C ... 100 °C |
Ambient Temperature (Operation) | -40 °C ... 100 °C (dependent on the derating curve) |
Air clearances and creepage distances
Clearances and creepage distances | IEC 60664-1:2007-04 |
Specification | IEC 60664-1:2007-04 |
Minimum clearance - inhomogeneous field (III/3) | 5.5 mm |
Minimum clearance - inhomogeneous field (III/2) | 5.5 mm |
Minimum clearance - inhomogeneous field (II/2) | 5.5 mm |
Minimum creepage distance value (III/3) | 5.5 mm |
Minimum creepage distance value (III/2) | 5.5 mm |
Minimum creepage distance value (II/2) | 5.5 mm |
Environmental Product Compliance
China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
China RoHS | No hazardous substances above threshold values |
