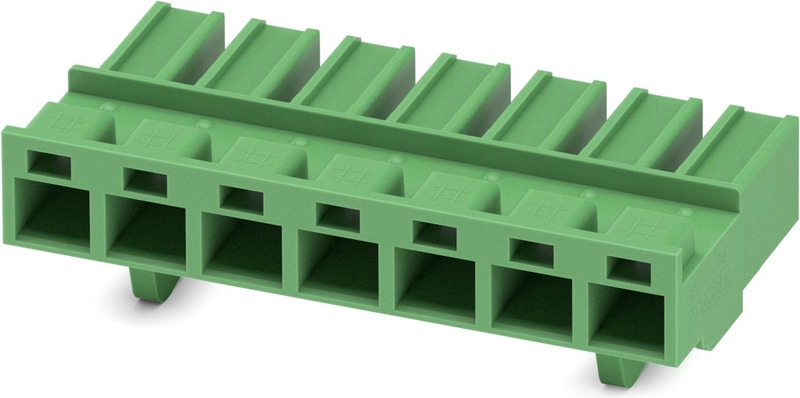

The figure shows an 10-position version
Official DistributorSKU
MPN
PCC 4/ 7-ST-7,62
Weight
0.007 kg
Series PCC
PCC 4/ 7-ST-7,62 - PCB connector
PCB connector, nominal cross section: 4 mm2, color: green, nominal current: 20 A, rated voltage (III/2): 1000 V, contact connection type: Socket, number of potentials: 7, number of rows: 1, number of positions: 7, number of connections: 7, product range: PCC 4/..-ST, pitch: 7.62 mm, connection method: Crimp connection, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON PC 4, locking: without, mounting: without, type of packaging: packed in cardboard, Corresponding female crimp contacts with current [A] and conductor cross section range [mm2] data: 13,5A/STG-MTN 0,5-1,0 (3190438); 13,5A/STG-MTN 0,5-1,0 BA (3190629); 20A/STG-MTN 1,5-2,5 (3190506); 20A/STG-MTN 1,5-2,5 BA (3190632). BA = Taped contacts
- Inexpensive connection of large quantities of preassembled conductors
- Small component size for applications where space is at a premium
Technical Specifications
Product properties
| Product family | PCC 4/..-ST |
| Product line | COMBICON Connectors L |
| Type | Standard |
| Number of Positions | 7 |
| Pitch | 7.62 mm |
| Number of Connections | 7 |
| Number of rows | 1 |
| Number of potentials | 7 |
| Mounting flange | without |
Electrical properties
| Nominal current IN | 20 A |
| Nominal voltage UN | 1000 V |
| Degree of pollution | 3 |
| Rated voltage (III/3) | 400 V |
| Rated surge voltage (III/3) | 8 kV |
| Rated voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
| Rated voltage (II/2) | 1000 V |
| Rated surge voltage (II/2) | 8 kV |
Connection technology
| Type | Standard |
| Connector system | COMBICON PC 4 |
| Nominal cross section | 4 mm² |
| Contact connection type | Socket |
Interlock
| Locking Type | without |
| Mounting flange | without |
Conductor connection
| Connection Method | Crimp connection |
| Conductor/PCB connection direction | 0 ° |
| Conductor cross section flexible | 0.5 mm² ... 2.5 mm² |
| Conductor cross section AWG | 20 ... 14 |
Material data - housing
| Color (Housing) | green (6021) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Dimensions
| Pitch | 7.62 mm |
| Width [w] | 53.29 mm |
| Height [h] | 17.2 mm |
| Length [l] | 28.7 mm |
Notes
| Notes on operation | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
Air clearances and creepage distances |
| Insulating material group | I |
| Rated insulation voltage (III/3) | 400 V |
| Rated surge voltage (III/3) | 8 kV |
| Rated insulation voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
| Rated insulation voltage (II/2) | 1000 V |
| Rated surge voltage (II/2) | 8 kV |
Packaging specifications
| Type of packaging | packed in cardboard |
Accessories
CP-PC RD - Coding profile, for plugging into the coding ribs of the plug at a later date, insulating material, color: Red
STG-MTN 0,5-1,0 - Module socket contact, inserted in the PCC or HCC plug housing after crimping the conductor, for 0.5 mm2 ... 1.0 mm2 conductors
STG-MTN 0,5-1,0 BA - Module socket contact, inserted in the PCC or HCC plug housing after crimping the conductor, for 0.5 mm2 ... 1.0 mm2 conductors, ribbon contact- STG-MTN 1,5-2,5 - Module socket contact, inserted in the PCC or HCC plug housing after crimping the conductor, for 1.5 mm2 ... 2.5 mm2 conductors
- STG-MTN 1,5-2,5 BAND - Module socket contact, inserted in the PCC or HCC plug housing after crimping the conductor, for 1.5 mm2 ... 2.5 mm2 conductors, ribbon contact
Crimping pliers, for crimping conductors to the module female contacts STG-MTN, crimp range: 0.5-2.5 mm2, AWG: 20-14
Strain relief, for the 3 to 4-position MCC 1/...STZ-3,81 and MCC 1/...STZF-3,81 plugs, for snapping into the latching chambers, can be labeled with ZB 6- Strain relief, for the 5 to 10-position MCC 1/...STZ-3,81 and MCC 1/...STZF-3,81 plugs, for snapping into the latching chambers, can be labeled with ZB 6
- Strain relief, for the 11 to 15-position MCC 1/...STZ-3,81 and MCC 1/...STZF-3,81 plugs, for snapping into the latching chambers, can be labeled with ZB 6
- Strain relief, for the 16 to 20-position MCC 1/...STZ-3,81 and MCC 1/...STZF-3,81 plugs, for snapping into the latching chambers, can be labeled with ZB 6
