1792096
Official DistributorSKU
PHX1792096
This product is Not Cancellable/Not Returnable

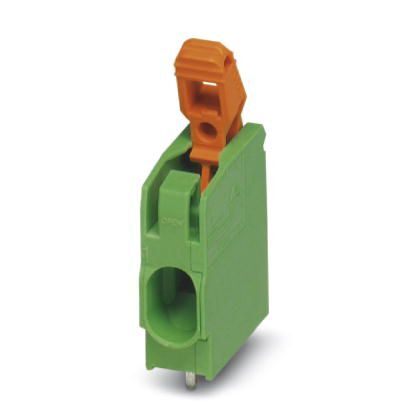

PCB terminal block - PLH 5/ 1-7,5
PCB terminal block, nominal current: 41 A, rated voltage (III/2): 1000 V, nominal cross section: 6 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, product range: PLH 5/, pitch: 7.5 mm, connection method: Push-lock spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear double pinning, Solder pin [P]: 3.6 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard
- Tool-free lever principle enables time-saving connection and release of conductors with/without ferrules
- Defined contact force ensures that contact remains stable over the long term
- Time-saving push-in connection when lever is closed
- Quick and convenient testing using integrated test option
Technical Specifications
Item properties
| Brief article description | PCB terminal block |
| Range of articles | PLH 5/ |
| Pitch | 7.5 mm |
| Number of Positions | 1 |
| Mounting Type | Wave soldering |
| Pin layout | Linear double pinning |
| Number of rows | 1 |
| Number of Connections | 1 |
| Number of potentials | 1 |
Electrical parameters
| Nominal Current | 41 A |
| Nom. voltage | 1000 V |
| Rated voltage (III/3) | 500 V |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (II/2) | 1000 V |
| Rated surge voltage (III/3) | 6 kV |
| Rated surge voltage (III/2) | 6 kV |
| Rated surge voltage (II/2) | 6 kV |
Connection capacity
| Connection Method | Push-lock spring connection |
| Conductor cross section solid | 0.2 mm² ... 6 mm² |
| Conductor cross section flexible | 0.2 mm² ... 6 mm² |
| Conductor cross section AWG / kcmil | 24 ... 10 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.2 mm² ... 6 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.2 mm² ... 6 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² |
| Stripping length | 12 mm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu alloy |
| Surface characteristics | Tin-plated |
| Metal surface terminal point (top layer) | Tin (10 - 16 µm Sn) |
| Metal surface soldering area (top layer) | Tin (10 - 16 µm Sn) |
Material data - housing
| Housing color | green (6021) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Dimensions for the product
| Caption | Schematische Abbildung - weitere Details siehe Produktfamilienzeichnung im Download Center |
| Length [ l ] | 22.7 mm |
| Width [ w ] | 8.5 mm |
| Height [ h ] | 27.7 mm |
| Pitch | 7.5 mm |
| Height (without solder pin) | 24.1 mm |
| Solder pin [P] | 3.6 mm |
| Pin spacing | 12.5 mm |
| Pin dimensions | 1.2 x 1.5 mm |
Dimensions for PCB design
| Hole diameter | 2 mm |
| Pin spacing | 12.5 mm |
Packaging information
| Type of packaging | packed in cardboard |
| Pieces per package | 25 |
| Denomination packing units | Pcs. |
General product information
| Type of note | Notes on operation |
| Note | The single-position PCB terminal block can be used for voltages up to 1500 V (DC) and 1000 V (AC). The relevant device standard and the appropriate required air clearances and creepage distances should be observed following installation |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient Temperature (Operation) | -40 °C ... 100 °C (Depending on the current carrying capacity/derating curve) |
Termination and connection method
| Connection test | IEC 60998-2-2:2002-12 |
| Test result | Test passed |
| Test for conductor damage and slackening | IEC 60998-2-2:2002-12 |
| Test for conductor damage and slackening | Test passed |
Pull-out test
| Pull-out test | IEC 60998-2-2:2002-12 |
| Conductor cross section / conductor type / tensile force | 0.2 mm² / solid / > 10 N |
| Conductor cross section / conductor type / tensile force | 0.2 mm² / flexible / > 10 N |
| Conductor cross section / conductor type / tensile force | 6 mm² / solid / > 80 N |
| Conductor cross section / conductor type / tensile force | 6 mm² / flexible / > 80 N |
Mechanical tests according to standard
| Test specification | IEC 60998-2-2 (in parts) |
Electrical tests
| Rated current | 41 A |
| Conductor Cross Section | 6 mm² |
| Rated voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 6 kV |
Air clearances and creepage distances
| Clearances and creepage distances | IEC 60664-1:2007-04 |
| Specification | IEC 60664-1:2007-04 |
| Minimum clearance - inhomogeneous field (III/3) | 8 mm |
| Minimum clearance - inhomogeneous field (III/2) | 8 mm |
| Minimum clearance - inhomogeneous field (II/2) | 5.5 mm |
| Minimum creepage distance value (III/3) | 12.5 mm |
| Minimum creepage distance value (III/2) | 5 mm |
| Minimum creepage distance value (II/2) | 5 mm |
Temperature-rise test
| Specification | IEC 60998-2-1:2002-12 |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
Current carrying capacity / derating curves
| Caption | Type: PLH 5/...-7,5(-ZF) |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 - 60.1 Hz) |
| Acceleration | 5g (60.1 - 150 Hz) |
| Test duration per axis | 2.5 h |
Insulation resistance
| Specification | IEC 60998-1:2002-12 |
| Result | Test passed |
| Insulation resistance, neighboring positions | > 5 MΩ |
Glow-wire test
| Specification | IEC 60998-1:2002-12 |
| Temperature | 850 °C |
| Time of exposure | 5 s |
Mechanical strength/tumbling barrel test
| Specification | IEC 60998-1:2002-12 |
| Number of drop cycles | 50 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
CRIMPFOX 6 - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm2 ... 6.0 mm2, lateral entry, trapezoidal crimp
