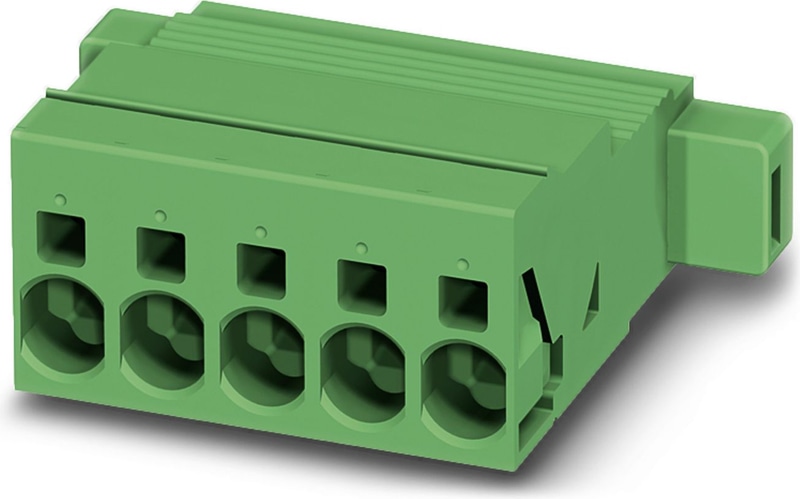

The figure shows a 5-pos. version of the product
1749201
Official DistributorSKU
PHX1749201
MPN
ISPC 5/ 2-STGF-7,62
Weight
0.011 kg
This product is Not Cancellable/Not Returnable
Series ISPC
ISPC 5/ 2-STGF-7,62 - PCB connector
PCB connector, nominal cross section: 6 mm2, color: green, nominal current: 41 A, rated voltage (III/2): 1000 V, contact surface: Tin, contact connection type: Pin, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: ISPC 5/..-STGF, pitch: 7.62 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON PC 5, locking: Screw locking mechanism, mounting: Threaded flange, type of packaging: packed in cardboard
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections
- Screwable flange for superior mechanical stability
- 600 V UL approval in the smallest of dimensions
Technical Specifications
Product properties
| Product family | ISPC 5/..-STGF |
| Product line | COMBICON Connectors L |
| Type | Inverted |
| Number of Positions | 2 |
| Pitch | 7.62 mm |
| Number of Connections | 2 |
| Number of rows | 1 |
| Number of potentials | 2 |
| Mounting flange | Threaded flange |
Electrical properties
| Nominal current IN | 41 A |
| Nominal voltage UN | 1000 V |
| Degree of pollution | 3 |
| Rated voltage (III/3) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| Rated voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
| Rated voltage (II/2) | 1000 V |
| Rated surge voltage (II/2) | 6 kV |
Connection technology
| Type | Inverted |
| Connector system | COMBICON PC 5 |
| Nominal cross section | 6 mm² |
| Contact connection type | Pin |
Interlock
| Locking Type | Screw locking mechanism |
| Mounting flange | Threaded flange |
Conductor connection
| Connection Method | Push-in spring connection |
| Conductor/PCB connection direction | 0 ° |
| Conductor cross section rigid | 0.2 mm² ... 10 mm² |
| Conductor cross section flexible | 0.2 mm² ... 6 mm² |
| Conductor cross section AWG | 24 ... 8 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 6 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 4 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.25 mm² ... 1.5 mm² |
| Cylindrical gauge a x b / diameter | 4.3 mm x 4.0 mm / 4.0 mm |
| Stripping length | 15 mm |
Specifications for ferrules without insulating collar
| recommended crimping tool | 1212034 CRIMPFOX 6 |
| recommended crimping tool | 1213144 CRIMPFOX CENTRUS 6S |
| recommended crimping tool | 1213146 CRIMPFOX CENTRUS 6H |
| ferrules without insulating collar, according to DIN 46228‑1 | Cross section: 0.5 mm²; Length: 10 mm ... 15 mm |
| ferrules without insulating collar, according to DIN 46228‑1 | Cross section: 0.75 mm²; Length: 10 mm ... 15 mm |
| ferrules without insulating collar, according to DIN 46228‑1 | Cross section: 1 mm²; Length: 10 mm ... 15 mm |
| ferrules without insulating collar, according to DIN 46228‑1 | Cross section: 1.5 mm²; Length: 12 mm ... 15 mm |
| ferrules without insulating collar, according to DIN 46228‑1 | Cross section: 2.5 mm²; Length: 12 mm ... 15 mm |
| ferrules without insulating collar, according to DIN 46228‑1 | Cross section: 4 mm²; Length: 12 mm ... 15 mm |
| ferrules without insulating collar, according to DIN 46228‑1 | Cross section: 6 mm²; Length: 12 mm ... 15 mm |
Specifications for ferrules with insulating collar
| recommended crimping tool | 1212034 CRIMPFOX 6 |
| recommended crimping tool | 1213144 CRIMPFOX CENTRUS 6S |
| recommended crimping tool | 1213146 CRIMPFOX CENTRUS 6H |
| ferrules with insulating collar, according to DIN 46228‑4 | Cross section: 0.5 mm²; Length: 10 mm ... 15 mm |
| ferrules with insulating collar, according to DIN 46228‑4 | Cross section: 0.75 mm²; Length: 12 mm ... 15 mm |
| ferrules with insulating collar, according to DIN 46228‑4 | Cross section: 1 mm²; Length: 12 mm ... 15 mm |
| ferrules with insulating collar, according to DIN 46228‑4 | Cross section: 1.5 mm²; Length: 12 mm ... 15 mm |
| ferrules with insulating collar, according to DIN 46228‑4 | Cross section: 2.5 mm²; Length: 12 mm ... 15 mm |
| ferrules with insulating collar, according to DIN 46228‑4 | Cross section: 4 mm²; Length: 12 mm ... 15 mm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu alloy |
| Surface characteristics | Tin-plated |
| Metal surface terminal point (top layer) | Tin (4 - 8 µm Sn) |
| Metal surface contact area (top layer) | Tin (4 - 8 µm Sn) |
Material data - housing
| Color () | () |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Dimensions
| Pitch | 7.62 mm |
| Width [w] | 30.48 mm |
| Height [h] | 19.8 mm |
| Length [l] | 40.5 mm |
| Installed height | 19.8 mm |
Notes
| Notes on operation | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 100 °C (dependent on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
Air clearances and creepage distances |
| Specification | IEC 60664-1:2007-04 |
| Insulating material group | I |
| Comparative tracking index (IEC 60112) | CTI 600 |
| Rated insulation voltage (III/3) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| minimum clearance value - non-homogenous field (III/3) | 8 mm |
| minimum creepage distance (III/3) | 12.5 mm |
| Rated insulation voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
| minimum clearance value - non-homogenous field (III/2) | 8 mm |
| minimum creepage distance (III/2) | 8 mm |
| Rated insulation voltage (II/2) | 1000 V |
| Rated surge voltage (II/2) | 6 kV |
| minimum clearance value - non-homogenous field (II/2) | 5.5 mm |
| minimum creepage distance (II/2) | 5.5 mm |
Packaging specifications
| Type of packaging | packed in cardboard |
Accessories
CP-PC RD - Coding profile, for plugging into the coding ribs of the plug at a later date, insulating material, color: Red
CRIMPFOX 6 - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm2 ... 6.0 mm2, lateral entry, trapezoidal crimp
