Official DistributorBy ABB
SKU
MPN
2CCF030034R0001
Weight
0.49 kg

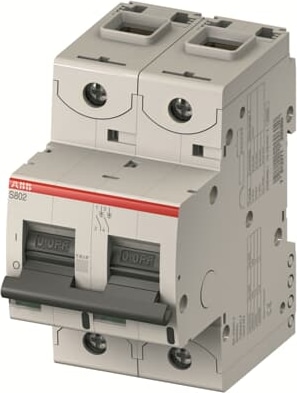

S802S-UCK1 2 Poles UC-K Characteristic 1A 50 kA 500 VDC High Performance Circuit Breaker HPCB
Technical Specifications
Technical
| Standards | IEC/EN 60947-2 |
| Tripping characteristic | UC-K |
| Rated Operational Voltage | acc. to IEC 60947-2 500 V DC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1500 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Input Voltage Type | DC |
| Rated Current (In) | 1 A |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (500 V DC) 50 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (500 V DC) 50 kA |
| Rated Frequency (f) | 0 Hz |
| Power Loss | 3.2 W |
| Power Loss | at Rated Operating Conditions per Pole 1.6 W |
| Contact Position Indication | ON / OFF / TRIP |
| Energy Limiting Class | 3 |
| Number of Protected Poles | 2 |
| Number of Poles | 2 |
| Overvoltage category | III |
| Tightening torque | 3.5 N·m |
| Actuator Marking | I / O |
| Housing Material | Insulation group I, RAL 7035 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Mounting Position | Any |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Remarks | Connection from top and bottom Connecting with CU only IP40 in enclosure with cover Cage terminal with captive screw |
| Connecting Capacity | Flexible 0 … 50 mm² |
| Connecting Capacity | Rigid 0 … 70 mm² |
| Terminal Type | Screw Terminals |
Dimensions
| Width in Number of Modular Spacings | 3 |
| Product Net Width | 54 mm |
| Product Net Height | 95 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 490 g |
| Built-In Depth (t2) | 82.5 mm |
Installation
| Instructions and Manuals | 2CCC413016M0008 |
Why Proax for ABB S802S-UCK1?
Proax is an authorized distributor of ABB S802S-UCK1 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | S802SUCK1 |
| Pack Size | 1 |
