Official DistributorBy ABB
SKU
MPN
2CCS862001R1597
Weight
0.503 kg

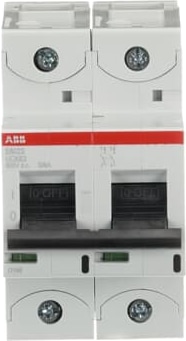

S802S-UCK63 High Performance Miniature Circuit Breaker 2 Poles K Characteristic 63A 50kA 250VDC
Technical Specifications
Technical
| Standards | IEC/EN 60947-2 |
| Tripping characteristic | UC-K |
| Type of Residual Current | Standard Version |
| Rated Operational Voltage | acc. to IEC 60947-2 500 V DC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1500 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Input Voltage Type | DC |
| Rated Current (In) | 63 A |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (500 V DC) 50 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (500 V DC) 50 kA |
| Frequency (f) | 50...60 Hz |
| Rated Frequency (f) | 0 Hz |
| Power Loss | 12.4 W |
| Power Loss | at Rated Operating Conditions per Pole 6.2 W |
| Contact Position Indication | ON / OFF / TRIP |
| Energy Limiting Class | 3 |
| Number of Protected Poles | 2 |
| Number of Poles | 2 |
| Overvoltage category | III |
| Release Type | K |
| Actuator Marking | I / O |
| Accessories Available | Yes |
| Connecting Capacity | Flexible 0 … 50 mm² |
| Connecting Capacity | Rigid 0 … 70 mm² |
| Terminal Type | Screw Terminals |
Dimensions
| Width in Number of Modular Spacings | 3 |
| Product Net Width | 54 mm |
| Product Net Height | 95 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 490 g |
| Size | 2 modules |
| Built-In Depth (t2) | 82.5 mm |
| Dimension Diagram | 2CCC413003C0201 |
Installation
| Instructions and Manuals | 2CCC413016M0008 |
