PT-103313-S20
Official DistributorBy ABB
SKU
ABBPT103313S20
MPN
7TAA263800R0022
Weight
1 kg

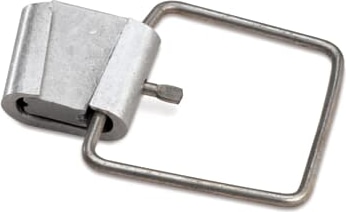

Power Tap Wedge with attached Bail, Shell PT-Yellow. Stranded Wire Range ACSR 954(45/7). AAC 1000 to 954 kcmil. CU 1000 kcmil. Solid Wire Size 2/0. 2/0 Tin Plated Copper Bail. Bail Inside Diameter 4-19/64 inch. Bail End is Peened so that the Stirrup cannot Pull out.
Technical Specifications
Additional Information
| Application | Reliable performance in the harshest of environments. |
| Brand / Label | Homac |
| Effective Date | 20080619 |
| Environmental Conditions | Outdoor Use. |
| Material | Aluminum |
| Product Name | Terminals, electrical splices and electr ical couplings; wafer probers |
Additional Information
| Product type | Overhead Wedge Connectors |
| Special Functions | RUS Accepted. Tin Plated Copper Bail. |
| Standards | RUS Accepted |
| Surface Finishing | Bare |
| Tap Size | 2/0 |
| Temperature Range | 90 °C |
Why Proax for ABB PT-103313-S20?
Proax is an authorized distributor of ABB PT-103313-S20 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | PT103313S20 |
| Pack Size | 1 |
