P9PDNF0
Official DistributorBy ABB
SKU
ABBP9PDNF0
MPN
1SFA187055R1300
Weight
0.013 kg

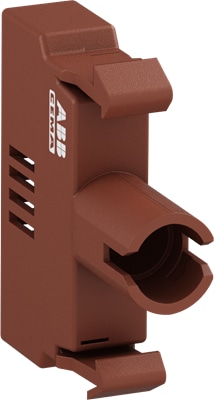

The P9PDNF0 Lamp Block is: Modular metal - Lamp Block - Brown - Illuminated - Front mounting - 380 V
This Lamp Block is part of ABB's modular metal range designed for mining, construction and heavy industry applications, combining the highest reliability with the full flexibility of a modular range.
Technical Specifications
Dimensions
| Product Net Width | 9.3 mm |
| Product Net Height | 36.3 mm |
| Product Net Depth / Length | 39.4 mm |
| Product Net Weight | 0.013 kg |
Technical
| Ambient Air Temperature | Operation -30 ... 70 °C |
| Ambient Air Temperature | Storage -40 ... +70 °C |
| Color | Brown |
| Illumination | Illuminated |
| Lamp Type | Lamp block for Ba9s socket for max 2W 380 V AC/DC LED |
| Mounting Type | Front mounting |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | Maximum 380 V |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm² |
| Connecting Capacity | Flexible with Ferrule 2 x 0.75...2.5 mm² |
| Connecting Capacity | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² |
| Connecting Capacity | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² |
| Connecting Capacity | Flexible 1 x 0.75 ... 2.5 mm² |
| Connecting Capacity | Flexible 2 x 0.75 ... 2.5 mm² |
| Connecting Capacity | Solid 1 x 0.75...2.5 mm² |
| Connecting Capacity | Solid 2 x 0.75...2.5 mm² |
| Connection Type | Faston |
| Terminal Type | Faston |
| Tightening torque | 0.9 N·m |
| Wire Stripping Length | 8 mm |
Technical UL/CSA
| Connecting Capacity UL/CSA | 1x 18...14 AWG |
| Connecting Capacity UL/CSA | 2x 18...14 AWG |
Why Proax for ABB P9PDNF0?
Proax is an authorized distributor of ABB P9PDNF0 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
