OT250ES30
Official DistributorBy ABB
SKU
ABBOT250ES30
MPN
1SCA022869R9900
Weight
1.5 kg

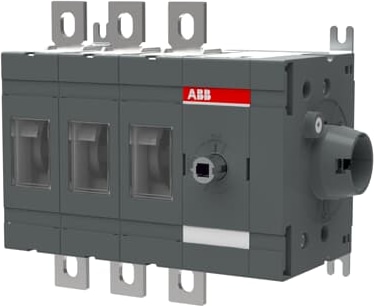

3-pole, side operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included
Technical Specifications
ABB EcoSolutions
| End Of Life Disassembling Instructions | 1SCC301117M0201 |
| Environmental Information | 1SCC301265D0201 |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
Dimensions
| Product Net Width | 181.5 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 82 mm |
| Product Net Weight | 1.5 kg |
Technical
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Standard |
| Handle Type | Handle and shaft not included |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating mode | Side |
| Pollution degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Line Terminals | Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Current AC-21A (Ie) | (500 V) 250 A |
| Rated Operational Current AC-21A (Ie) | (690 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 250 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 75 kW |
| Rated Operational Power AC-23A (Pe) | (400 ... 415 V) 145 kW |
| Rated Operational Power AC-23A (Pe) | (500 V) 170 kW |
| Rated Operational Power AC-23A (Pe) | (690 V) 250 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Switches Operating Mechanism | 30 (Right Side) |
| Terminal Type | Lug terminals |
| Tightening torque | acc. IEC 60947-1 15 … 22 N·m |
Technical UL/CSA
| Tightening torque | acc. IEC 60947-1 15 … 22 N·m |
