1SCA103714R1001
Weight
1 kg

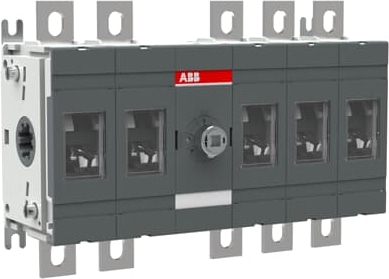

5-pole, front operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included
Technical Specifications
Dimensions
| Product Net Width | 220.5 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 2.1 kg |
Technical
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Current AC-21A (Ie) | (500 V) 250 A |
| Rated Operational Current AC-21A (Ie) | (690 V) 250 A |
| Rated Operational Current AC-21A (Ie) | (1000 V) 250 A |
| Rated Operational Current AC-21B (Ie) | (690 V) 250 A |
| Rated Operational Current DC-21B (Ie) | (800 V) 250 A |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Pollution degree | 3 |
| Handle Type | Handle and shaft not included |
| Switches Operating Mechanism | Mechanism Between the Poles |
| Switches Operating Mechanism | 23 (Between the Poles |
| Distance Between Phases | Standard |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Line Terminals | Bottom In - Top Out |
| Operating mode | Front operated |
| Standards | IEC 60947-3 |
| Special Functions | No |
| Mounting Type | Base mounting |
| Number of Poles | 5 |
| Degree of Protection | Front IP00 |
| Terminal Type | Lug terminals |
| Tightening torque | acc. IEC 60947-1 15 … 22 N·m |
| Mechanical Durability | 20000 |
| Lock type | No |
Technical UL/CSA
| Tightening torque | acc. IEC 60947-1 15 … 22 N·m |
