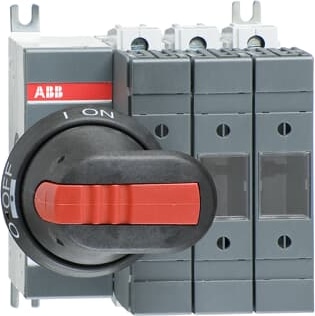

Switch Fuses,Front Operated,3-pole,03 (Left Side),DIN,000,Handle and shaft included,
Technical Specifications
Dimensions
| Product Net Width | 112 mm |
| Product Net Height | 125 mm |
| Product Net Depth / Length | 121 mm |
| Product Net Weight | 1.18 kg |
| Product Net Weight | 2.6 lb |
Technical
| Rated Operational Current AC-21A (Ie) | (500 V) 32 A |
| Rated Operational Current AC-21A (Ie) | (690 V) 32 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 32 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 32 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 32 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 32 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 7.5 kW |
| Rated Operational Power AC-23A (Pe) | (400 V) 15 kW |
| Rated Operational Power AC-23A (Pe) | (415 V) 15 kW |
| Rated Operational Power AC-23A (Pe) | (500 V) 18.5 kW |
| Rated Operational Power AC-23A (Pe) | (690 V) 22 kW |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 32 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Power Loss | at Rated Operating Conditions per Pole 1 W |
| Pollution degree | 3 |
| Handle Type | Pistol handle and shaft included |
| Switches Operating Mechanism | 03 (Left Side) |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Fuse Size | NH000 |
| Fuse System | DIN |
| Operating mode | Front Operated |
| Standards | IEC 60947-3 |
| Mounting Type | Base mounting |
| Number of Poles | 3 |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Terminal Type | Screw Terminals |
| Tightening torque | 3 N·m |
| Tightening torque | 4 N·m |
| Rated Current (In) | Main Circuit 32 A |
Technical UL/CSA
| Tightening torque | 3 N·m |
| Tightening torque | 4 N·m |
