MC1C400ATWJ
Official DistributorBy ABB
SKU
ABBMC1C400ATWJ
MPN
1SAL220342R9901
Weight
0.25 kg

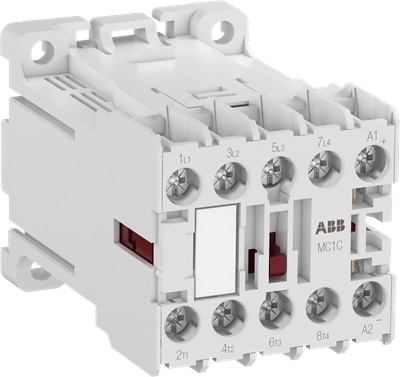

The MC1C400ATWJ mini contactor is a dimension optimized 4 pole contactor with screw terminals. This device is a great solution when high performances are needed but the space is limited. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. The product is equipped with an extended operating limits coil and it's suitable for wall or rail mounting.
Technical Specifications
Dimensions
| Product Net Width | 45 mm |
| Product Net Depth / Length | 68 mm |
| Product Net Height | 48 mm |
| Product Net Weight | 0.25 kg |
Technical
| Number of Main Contacts NO | 4 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 4P |
| Standards | IEC/EN 60947-1 |
| Standards | IEC/EN 60947-4-1 |
| Standards | UL 60947-1 |
| Standards | UL 60947-4-1 |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Operational Voltage | Main Circuit 440 V DC |
| Rated Frequency (f) | Control Circuit DC |
| Rated Frequency (f) | Main Circuit 50 Hz |
| Rated Frequency (f) | Main Circuit 60 Hz |
| Rated Frequency (f) | Main Circuit DC |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 20 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 55 °C 20 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 70 °C 16 A |
| Rated Operational Current AC-1 (Ie) | (230 V) 55 °C 20 A |
| Rated Operational Current AC-1 (Ie) | (230 V) 70 °C 16 A |
| Rated Operational Current AC-1 (Ie) | (400 V) 55 °C 20 A |
| Rated Operational Current AC-1 (Ie) | (400 V) 70 °C 16 A |
| Rated Operational Current AC-1 (Ie) | (500 V) 55 °C 20 A |
| Rated Operational Current AC-1 (Ie) | (500 V) 70 °C 16 A |
| Rated Operational Current AC-3 (Ie) | (230 V) 55°C 9 A |
| Rated Operational Current AC-3 (Ie) | (400 V) 55 °C 9 A |
| Rated Operational Current AC-3 (Ie) | (500 V) 55 °C 8 A |
| Rated Operational Current AC-3 (Ie) | (690 V) NO 55°C 5 A |
| Rated Operational Power AC-3 (Pe) | (230 V) Three Phase 2.2 kW |
| Rated Operational Power AC-3 (Pe) | (400 V) Three Phase 4 kW |
| Rated Operational Power AC-3 (Pe) | (500 V) Three Phase 4 kW |
| Rated Operational Power AC-3 (Pe) | (690 V) Three Phase, NO 4 kW |
| Rated Breaking Capacity AC-3 | 8 x Ie / AC-3 |
| Rated Making Capacity AC-3 | 10 x Ie / AC-3 |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles per hour |
| Maximum Electrical Switching Frequency | (AC-15) 360 cycles per hour |
| Maximum Electrical Switching Frequency | (AC-3) 1200 cycles per hour |
| Maximum Electrical Switching Frequency | (DC-1) 600 cycles per hour |
| Maximum Electrical Switching Frequency | (DC-13) 360 cycles per hour |
| Maximum Electrical Switching Frequency | (DC-3) 600 cycles per hour |
| Mechanical Durability | Nr. Operations 10000000 cycle |
| Coil Operating Limits | (acc. to IEC 60947-4-1) for DC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C) |
| Rated Control Circuit Voltage (Uc) | 110 V DC |
| Coil Consumption | Average Holding Value DC 4 W |
| Coil Consumption | Average Pull-in Value DC 4 W |
| Power Loss | at Rated Operating Conditions AC-1 per Pole 0.7 W |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 0.75 ... 2.5 mm² |
| Connecting Capacity Main Circuit | Flexible with Ferrule 2x 0.75 ... 1.5 mm² |
| Connecting Capacity Main Circuit | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² |
| Connecting Capacity Main Circuit | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² |
| Connecting Capacity Main Circuit | Flexible 1/2x 0.75 ... 2.5 mm² |
| Connecting Capacity Main Circuit | Rigid 1x 0.75 ... 4 mm² |
| Connecting Capacity Main Circuit | Rigid 2x 0.75 ... 2.5 mm² |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1x 0.75 ... 2.5 mm² |
| Connecting Capacity Control Circuit | Flexible with Ferrule 2x 0.75 ... 1.5 mm² |
| Connecting Capacity Control Circuit | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² |
| Connecting Capacity Control Circuit | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² |
| Connecting Capacity Control Circuit | Flexible 1/2x 0.75 ... 2.5 mm² |
| Connecting Capacity Control Circuit | Rigid 1/2x 0.75 ... 2.5 mm² |
| Wire Stripping Length | Control Circuit 9 mm |
| Wire Stripping Length | Main Circuit 9 mm |
| Degree of Protection | Control Circuit Terminals IP20 |
| Degree of Protection | Main Circuit Terminals IP20 |
| Recommended Screw Driver | Pozidriv 2 |
| Tightening torque | Control Circuit 0.8 N·m |
| Tightening torque | Main Circuit 0.8 ... 1.0 N·m |
| Terminal Type | Screw Terminals |
| Mini Contactor Type | Mini Contactor |
| Product Name | Mini Contactor |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| General Use Rating UL/CSA | (600 V AC) 20 A |
| Horsepower Rating UL/CSA | (115 V AC) Single Phase 0.5 Hp |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 3 Hp |
| Horsepower Rating UL/CSA | (220 ... 240 V AC) Three Phase 3 Hp |
| Horsepower Rating UL/CSA | (230 V AC) Single Phase 1.5 Hp |
| Horsepower Rating UL/CSA | (440 ... 480 V AC) Three Phase 5 Hp |
| Horsepower Rating UL/CSA | (550 ... 600 V AC) Three Phase 5 Hp |
| Connecting Capacity Main Circuit UL/CSA | Stranded 1/2x 18-12 AWG |
| Tightening Torque UL/CSA | Control Circuit 7 in·lb |
| Tightening Torque UL/CSA | Main Circuit 7 in·lb |
| Full Load Amps Motor Use | (115 V AC) Single Phase 9.8 A |
| Full Load Amps Motor Use | (200 V AC) Three Phase 11 A |
| Full Load Amps Motor Use | (220 ... 240 V AC) Three Phase 9.6 A |
| Full Load Amps Motor Use | (230 V AC) Single Phase 10 A |
| Full Load Amps Motor Use | (440 ... 480 V AC) Three Phase 7.6 A |
| Full Load Amps Motor Use | (550 ... 600 V AC) Three Phase 6.1 A |
