Official DistributorBy ABB
SKU
MPN
1SAL100989R9906
Weight
0.045 kg

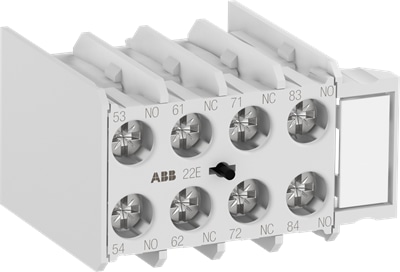

The MARN422AT is an auxiliary contact for front mounting with 2NO/2NC contacts and screw terminals. Auxiliary contacts are used for the operation of auxiliary circuits and control circuits. The auxiliary contact meets the requirements of EN 50005.
Technical Specifications
Dimensions
| Product Net Width | 45 mm |
| Product Net Height | 27 mm |
| Product Net Depth / Length | 35 mm |
| Product Net Weight | 0.04 kg |
Technical
| Rated Operational Voltage | Auxiliary Circuit 690 V AC |
| Rated Operational Voltage | Auxiliary Circuit 440 V DC |
| Rated Frequency (f) | Auxiliary Circuit 50 Hz |
| Rated Frequency (f) | Auxiliary Circuit 60 Hz |
| Rated Frequency (f) | Auxiliary Circuit DC |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 750 V |
| Number of Poles | 4 |
| Degree of Protection | IP20 |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 2x 0.75 ... 1.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1x 0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible 1/2x 0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Rigid 1/2x 0.75 ... 2.5 mm² |
| Tightening torque | Auxiliary Circuit 0.8 N·m |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Recommended Screw Driver | Auxiliary Circuit Pozidriv 2 |
| Standards | IEC/EN 60947-1 |
| Standards | IEC/EN 60947-5-1 |
| Standards | UL 60947-1 |
| Standards | UL 60947-5-1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Auxiliary Contacts NC | 2 |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 0 |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit 10 A |
| Suitable for | MC1 |
| Suitable for | MC2 |
| Suitable for | MCR equipped with Screw terminals |
| Suitable for Product Class | Mini Contactors |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | 600 V AC |
| Connecting Capacity Auxiliary Circuit UL/CSA | Stranded 18-12 AWG |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 in·lb |
| Contact Rating UL/CSA | A600 |
| Contact Rating UL/CSA | Q600 |
Why Proax for ABB MARN422AT?
Proax is an authorized distributor of ABB MARN422AT and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
