Name: 1641879
Brand: Phoenix Contact
SKU: PHX1641879
Price: 18.5800 CAD
Availability: InStock

Official Distributor

By Phoenix Contact

SKU

MPN

Q 0,34/4IDC/16-16KU-KU BK

Weight

0.014 kg

This product is Not Cancellable/Not Returnable

Series Q

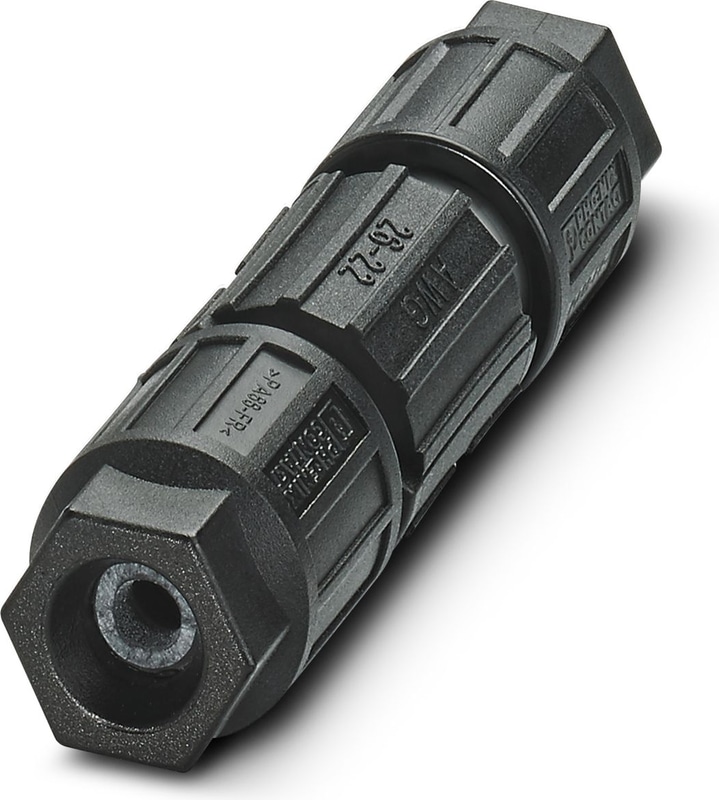

Q 0,34/4IDC/16-16KU-KU BK - Conductor connector

Conductor connector, connection method: IDC connection, 0.14 mm2 ... 0.34 mm2, 125 V, 5 A, PA, black, coding: no, external cable diameter: 3.5 mm ... 6 mm

Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Easy and safe - with the cable connector, you can repair or extend cables quickly, in combination with the connector as well as the coupling connection

Product properties

Number of Positions	4
Position marking	1, 2, 3, 4
Number of Connections	4
Number of connections per position	1
Coding	no

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Dimensions

Width	16.3 mm
Height	16.3 mm
Length	70 mm
Diameter	16.3 mm

Connection technology

Frequency of connections between conductors of the same cross section

max. 10

Conductor connection

Tightening torque	0.8 Nm
Tightening torque Union nut	0.8 Nm

Electrical properties

Rated surge voltage (II/2)	2.5 kV
Rated surge voltage (III/2)	2.5 kV
Rated surge voltage (III/3)	2.5 kV
Rated current	5 A
Contact resistance	≤ 5 mΩ
Rated voltage (II/2)	320 V
Rated voltage (III/2)	200 V
Rated voltage (III/3)	125 V
Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	125 V AC
Nominal voltage U_N	125 V DC
Nominal current I_N	5 A

Material specifications

Color	black (RAL 9005)
Material Housing	PA
Material Contact	Steel
Material Contact surface	tin-plated
Flammability rating according to UL 94	V0
Material wire insulation	PVC/PE/TPE/rubber

Cable/line

Structure of individual litz in acc. with VDE 0295 / smallest wire diameter	VDE 0295 class 1 to 6/min. 0.15 mm
External Cable Diameter	3.5 mm ... 6 mm
Wire diameter including insulation	0.7 mm ... 1.6 mm
Position marking	1, 2, 3, 4
Material wire insulation	PVC / PE

Ambient conditions

Degree of Protection	IP65
Degree of Protection	IP67
Ambient Temperature (Operation)	-40 °C ... 80 °C
Temperature when conductor connected	-5 °C ... 50 °C
Ambient temperature (storage/transport)	-40 °C ... 80 °C
