Phoenix Contact 1621569
AllConnectorsCircular connectors

1621569

Official Distributor

By Phoenix Contact

SKU
PHX1621569
MPN
SH-8EPC58AWA00S
Weight
0.056 kg
This product is Not Cancellable/Not Returnable

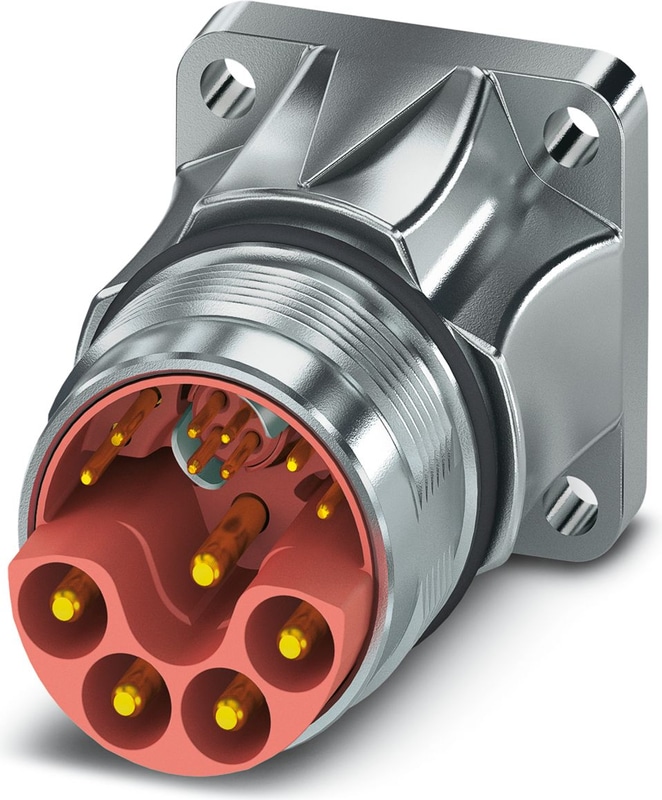

SH-8EPC58AWA00S - Device connector front mounting

M23, Device connector front mounting, series: SH, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 4+4+4+PE / 3+N+PE, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, Axial O-ring, 4x Ø 3.2, flange dimensions: 26 mm x 26 mm, coding: N

  • Transmission of signals, data, and power in just a single connector
  • CAT5 data interface for up to 100 Mbps
  • Safe use in the field, thanks to high degree of protection
  • Consistent EMC protection for reliable connection solutions in the industrial environment
Technical Specifications

Notes

Order information:Crimp contacts, 4x Ø 0.8 mm, 4x Ø 1 mm, 5x Ø 2 mm, order separately

Safety note

Safety noteWARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
Safety note• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Safety note• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
Safety note• The products are suitable for applications in plant, controller, and electrical device engineering.
Safety note• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
Safety note• Assembled products may not be manipulated or improperly opened.
Safety note• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
Safety note• When using the product in direct connection with third-party manufacturers, the user is responsible.
Safety note• For operating voltages > 50 V AC, conductive connector housings must be grounded
Safety note• Ensure that the protective or functional ground has been properly connected.
Safety note• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
Safety note• Only use tools recommended by Phoenix Contact
Safety note• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
Safety note• Operate the connector only when it is fully plugged in and interlocked.
Safety note• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
Safety note• Observe the minimum bending radius of the cable. Lay the cable without twisting it.
Safety note• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).

Mounting

Mounting4x Ø 3.2

Housing

Flange dimensions26 mm x 26 mm

Material specifications

Flammability rating according to UL 94V0

Connector

Typeangled rotatable

Insulating body

NoteOrder information: Crimp contacts, 4x Ø 0.8 mm, 4x Ø 1 mm, 5x Ø 2 mm, order separately
Protection against electric shockIEC 61984 and VDE 0623
Data rate100 Mbps
CodingN
Insulation body materialPA 6.6
Insertion/withdrawal cycles100
Connection MethodCrimp connection
Contact switching typePin
ApplicationHybrid
Number of Positions13
Direction of rotationStandard
Connection profile4+4+4+PE / 3+N+PE
Contact diameter Power contacts2 mm
Litz wire cross-section Power contacts min.0.25 mm²
Litz wire cross-section Power contacts max.4 mm²
Rated current Power contacts30 A
Notefor max. connection cross section
Rated surge voltage6 kV
Rated voltage (II/3) power contact850 V DC
Rated voltage (III/3) power contact630 V AC
Contact diameter Signal contacts1 mm
Litz wire cross-section Signal contacts min.0.06 mm²
Litz wire cross-section Signal contacts max.1 mm²
Nominal current per signal contact8 A
Notefor max. connection cross section
Rated surge voltage1.5 kV
Rated voltage (III/3) signal contact50 V
Contact diameter Data contacts0.8 mm
Litz wire cross-section Data contacts min.0.08 mm²
Litz wire cross-section Data contacts max.0.5 mm²
Rated current per data contact at 25°C3.6 A
Notefor max. connection cross section
Rated voltage Data contacts50 V
Rated surge voltage1.5 kV
Installation height2000 m

Housing

Housing MaterialTurned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Flange dimensions26 mm x 26 mm
Type of lockingfor standard and SPEEDCON interlock
Pg screw connectionnone
Degree of protection (plugged in)IP67
Degree of protection (plugged in)IP68
Thread typeM23

Ambient conditions

Ambient Temperature (Operation)-40 °C ... 115 °C (see derating curve)
Ambient temperature (storage/transport)15 °C ... 25 °C
Permissible humidity (storage/transport)50 % ... 65 %
Accessories
  • 1622139
    1622139
    Metal protective cap - SH-Z2302
  • 1618255
    1618255
    ST-10KP010 - Crimp contact, Pin, turned, Single contact, contact diameter: 1 mm, crimp range: 0.06 mm2 ... 0.25 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1243215
  • 1618458
    1618458
    ST-10KP035 - Crimp contact, Pin, turned, contact diameter: 1 mm, crimp range: 0.25 mm2 ... 1 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1243215
  • 1621579
    1621579
    SF-20KP021 - Crimp contact, Pin, turned, contact diameter: 2 mm, crimp range: 0.25 mm2 ... 1 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1244464
  • 1621580
    1621580
    SF-20KP022 - Crimp contact, Pin, turned, contact diameter: 2 mm, crimp range: 1.5 mm2 ... 2.5 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1244464
  • 1621581
    1621581
    SF-20KP023 - Crimp contact, Pin, turned, contact diameter: 2 mm, crimp range: 2.5 mm2 ... 4 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1244465
  • 1621574
    1621574
    SF-08KP010 - Crimp contact, Pin, turned, contact diameter: 0.8 mm, crimp range: 0.08 mm2 ... 0.25 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1244458
  • 1621575
    1621575
    SF-08KP020 - Crimp contact, Pin, turned, contact diameter: 0.8 mm, crimp range: 0.34 mm2 ... 0.5 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1244459
  • 1620624
    1620624
    Color-coding, color: green
