Name: 1621574
Brand: Phoenix Contact
SKU: PHX1621574
Price: 3.5800 CAD
Availability: InStock

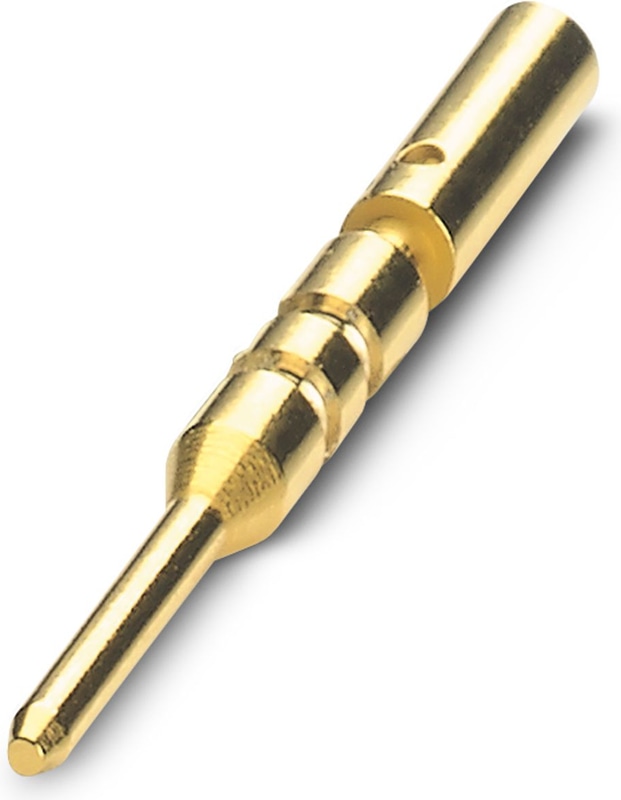

The figure may differ depending on the connection area

Official Distributor

By Phoenix Contact

SKU

MPN

SF-08KP010

Weight

0 kg

This product is Not Cancellable/Not Returnable

Series SF

SF-08KP010 - Crimp contact

Crimp contact, Pin, turned, contact diameter: 0.8 mm, crimp range: 0.08 mm2 ... 0.25 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1244458

Crimping connection: vibration- and temperature-resistant assembly
High tensile strength of the connection
Low contact resistance
Easy production monitoring

Product properties

Contact material type

turned

Connection data

Connection Method	Crimp connection
Contact connection type	Pin
Conductor Cross Section	0.08 mm² ... 0.25 mm²

Material specifications

Contact surface	Nickel-plated (Ni), with gold coating (Au)
Contact Material	CuZn

Mechanical characteristics

Contact diameter

0.8 mm

Mechanical data

Insertion/withdrawal cycles

100

1615585
SF-Z0054 - Crimping pliers for turned crimp contacts Ø 0.6 mm / Ø 0.8 mm / Ø 1 mm / Ø 2 mm, litz wire cross section of 0.06 mm2 ... 2.5 mm2
1615584
SF-Z0053 - Locator for RC-Z2514 and RC-Z2504 crimping pliers, for crimping turned SF and ST contacts, diameter of 0.6 mm ... 1.0 mm and 2.0 mm.

Proax is an authorized distributor of Phoenix Contact 1621574 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time

Highly Trained Staff

Live Chat

Technical Support

Local Inventory

60+ Years Experience

Pack Size

100

1621575
SF-08KP020 - Crimp contact, Pin, turned, contact diameter: 0.8 mm, crimp range: 0.34 mm2 ... 0.5 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1244459
1621571
SF-08KS010 - Crimp contact, Socket, turned, contact diameter: 0.8 mm, crimp range: 0.08 mm2 ... 0.25 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1244455
1621573
Crimp contact, Socket, turned, contact diameter: 0.8 mm, crimp range: 0.34 mm2 ... 0.5 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1244457
